Diagnostic Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

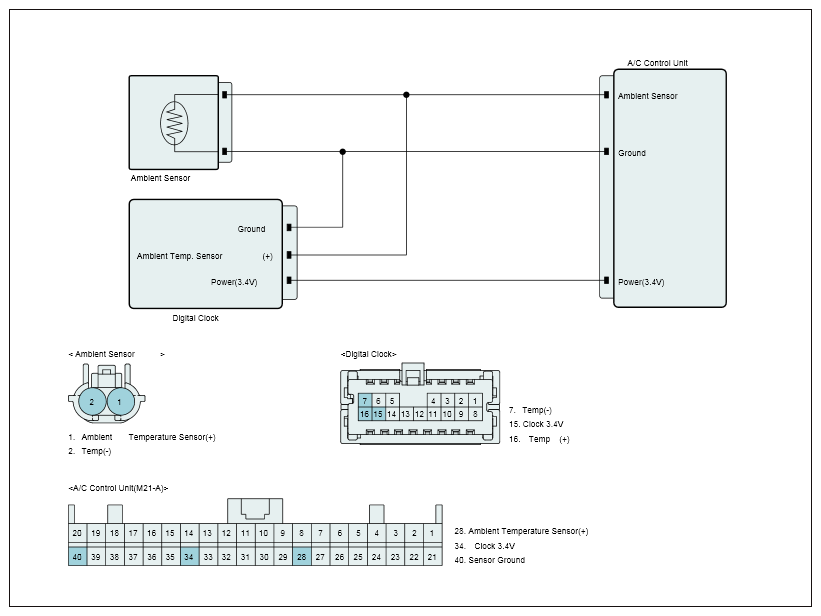

Fig 1: Ambient Sensor Circuit Diagram
G10591176Courtesy of HYUNDAI MOTOR AMERICA
DIGITAL CLOCK POWER SPECIFICATION

  Connected Disconnected
Voltage approximately 3.4V approximately 5V
