Ground Circuit Inspection

WARNING: This page is about a different variant/trim than selected.

■ Check for Open in Harness

Ignition "OFF"
Disconnect Ambient Sensor and Digital Clock and A/C control unit main harness connector.
Measure resistance between ground terminal of ambient sensor harness connector and ground terminal of Digital Clock harness connector.
Specification : below 1

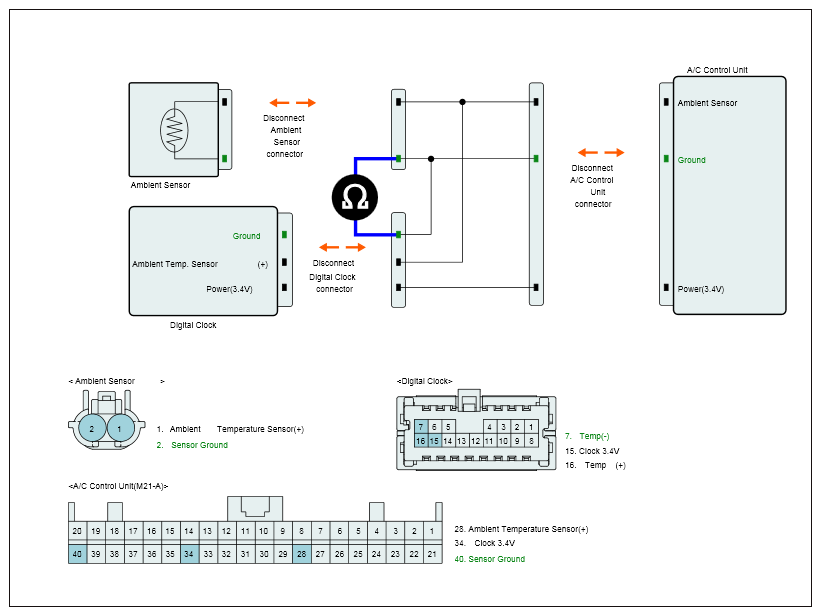

Fig 1: Measuring Resistance Between Ambient Sensor And Digital Clock Harness Connectors
Courtesy of HYUNDAI MOTOR AMERICA
Is the measured resistance within specification?
YES
- Go to "COMPONENT INSPECTION " procedure.
NO
- Check for open in harness.
- Repair as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
