Monitor Scantool data

WARNING: This page is about a different variant/trim than selected.
  1. Connect GDS to the DLC.
  2. Warm up the Engine to normal operating temperature.
  3. Select and monitor the "Ambient Air Temperature Sensor" parameter.

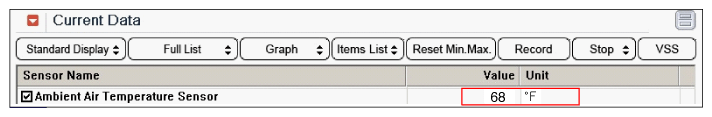

    Fig 1: Screen Display - Ambient Air Temperature Sensor
    G10591169Courtesy of HYUNDAI MOTOR AMERICA
  4. Is the Ambient Sensor abnormal?

    YES

    NO

    • This is a intermittent problem caused by poor contact of component or Control Unit.
    • Thoroughly check the looseness, poor connection, bent, corrosion, contamination, deformation or damage of connector.
    • Repair or replace as necessary and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
