Power Circuit Inspection

■ Check Short to Battery in Harness

1. Ignition "OFF"
2. Disconnect Digital Clock and harness connector.
3. Ignition "ON"
4. Measure voltage between Power terminal of Digital Clock harness connector and chassis ground.

   Specification  : Approximately 5V

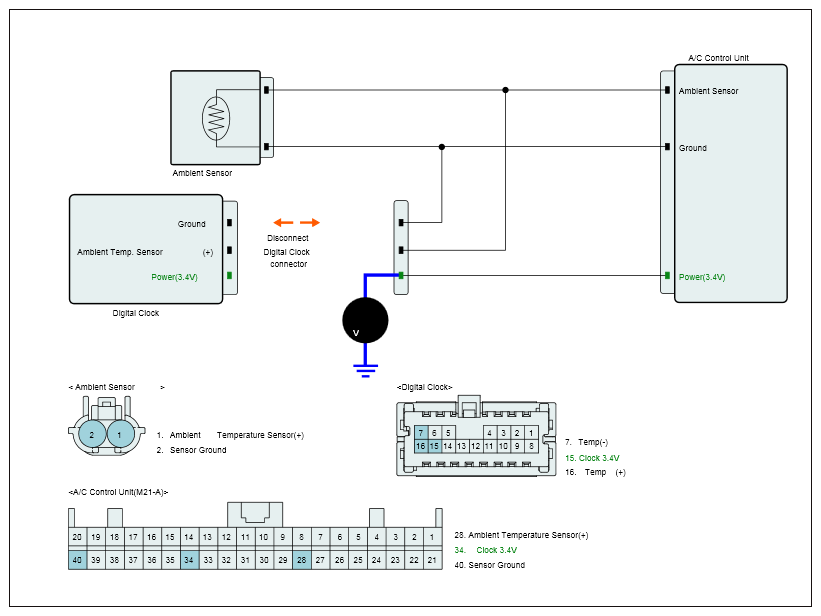

   Fig 1: Measuring Voltage Between Power Terminal Of Digital Clock Harness Connector And Chassis Ground

   Courtesy of HYUNDAI MOTOR AMERICA
5. Is the measured voltage within specification?

   YES

   • Repair as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
   • Substitute with a known-good Digital Clock and check for proper operation. If the problem is corrected, replace Digital Clock and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   NO

   • Check for short to battery in harness.
   • Repair as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
