Monitor Scantool Data

WARNING: This page is about a different variant/trim than selected.
  1. Connect GDS to DLC.
  2. Check for PCM DTC(s).
  3. Clear any PCM DTC(s).
  4. If no PCM DTC(s), select the "Air Conditioner Pressure Sensor" parameter.
  5. Engine RUNNING: Watch for the A/C Pressure parameter to change while turning A/C ON and OFF.

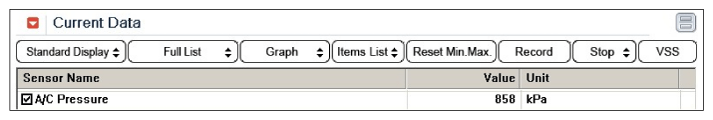

    Fig 1: Screen Display - A/C Pressure
    G10591152Courtesy of HYUNDAI MOTOR AMERICA
  6. Is the Air Conditioner pressure sensor normal?

    YES

    • Check that there is any CAN related DTC and then, repair or replace as necessary. Finally, check that is possible to clear this DTC
    • This is a intermittent problem caused by poor contact of Control Module
    • Thoroughly check the looseness, poor connection, bent, corrosion, contamination, deformation or damage of connector.
    • Repair or replace as necessary and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO

    • Check air conditioner pressure sensor, circuit, or related component. Repair or replace as necessary and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
