Power Circuit Inspection

■ Check Power in Harness

1. Ignition "OFF"
2. Disconnect Auto Defog Actuator and Connect A/C control unit main harness connector. 3. Ignition "ON".
3. Ignition "ON"
4. Measure voltage between Sensor REF (5V) terminal of Auto Defog actuator harness connector and chassis ground.

   Specification  : Approx. 5V

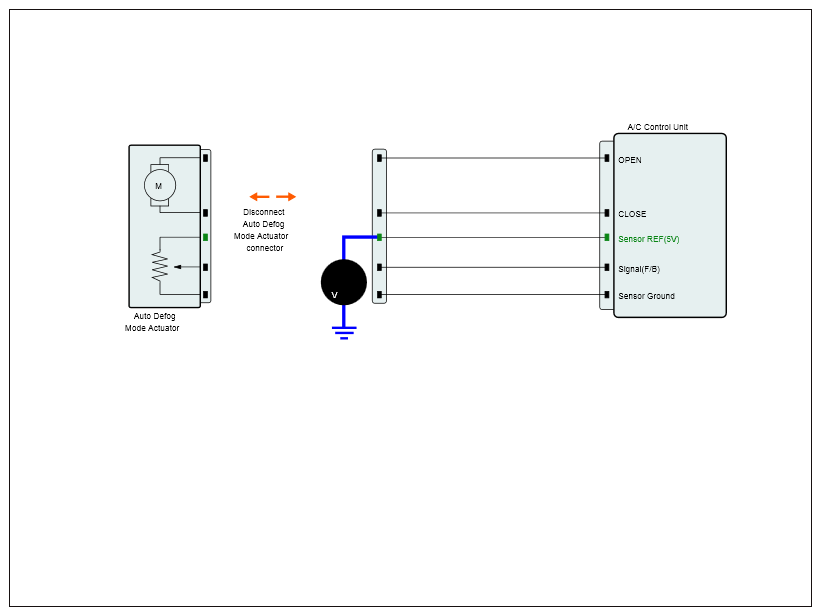

   Fig 1: Measuring Voltage Between Auto Defog Actuator Harness Connector And Chassis Ground

   Courtesy of HYUNDAI MOTOR AMERICA
5. Is the measured voltage within specification?

   YES

   • Go to "COMPONENT INSPECTION " procedure.

   NO

   • Check for open and short to ground in harness.
   • Repair as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
