Signal Circuit Inspection

■ Check Short to Battery in Harness

1. Ignition "OFF"
2. Disconnect Evaporator sensor and A/C control unit main harness connector.
3. Ignition "ON"
4. Measure voltage between Signal (F/B) terminal of Evaporator sensor harness connector and chassis ground.

   Specification  : 0V

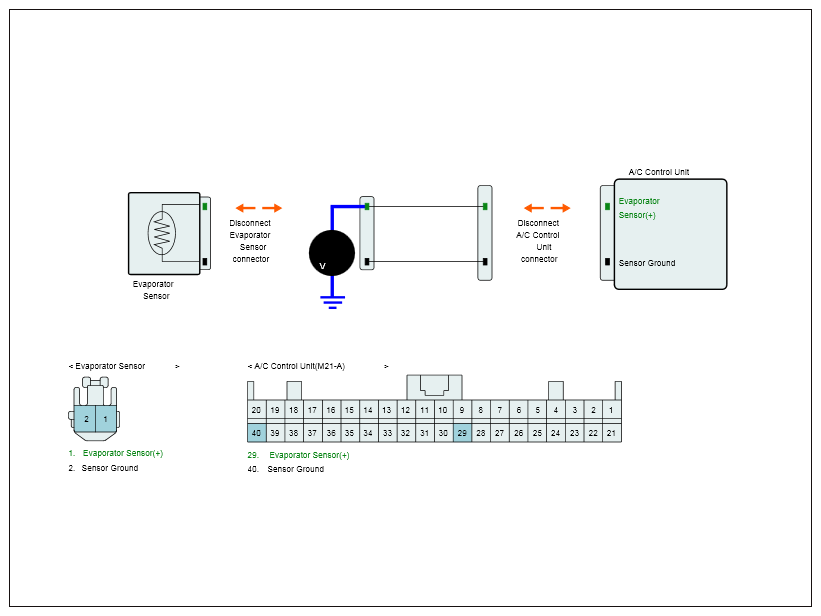

   Fig 1: Measuring Voltage Between Evaporator Sensor Harness Connector And Chassis Ground

   Courtesy of HYUNDAI MOTOR AMERICA
5. Is the measured voltage within specification?

   YES

   • Go to "Check for Open in Harness " as follows.

   NO

   • Check for short to battery in harness.
   • Repair as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

■ Check for Open in Harness

1. Ignition "OFF"
2. Disconnect Evaporator sensor and A/C control unit main harness connector.
3. Measure resistance between Signal (+) terminal of Evaporator sensor harness connector and Signal (+) terminal of A/C-ECU harness connector.

   Specification  : below 1

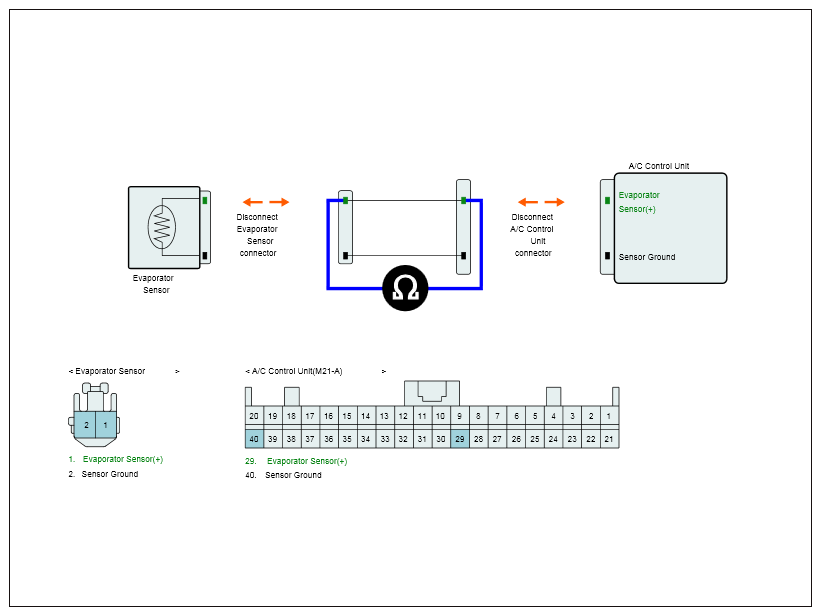

   Fig 2: Measuring Resistance Between Evaporator Sensor Harness Connector And A/C-ECU Harness Connector

   Courtesy of HYUNDAI MOTOR AMERICA
4. Is the measured resistance within specification?

   YES

   • Go to "GROUND CIRCUIT INSPECTION " procedure.

   NO

   • Check for open in harness.
   • Repair as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
