Monitor Scantool data
WARNING: This page is about a different variant/trim than selected.
- Connect Scantool with diagnostic connector.
- Warm up the Engine to normal Engine temperature after Engine starts.
- Select and monitor "Evaporator Sensor" parameter on Scantool.

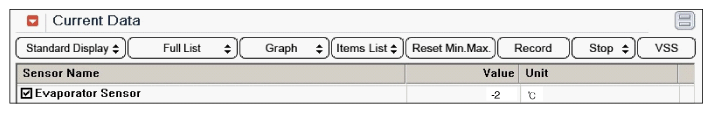

Fig.1
Fig.1) Parameter of "Evaporator Sensor" will be fixed at -2°C (28.4°F), if there is any fault in Evaporator Sensor.
- Is the Evaporator Sensor abnormal?
YES
- Go to "INSPECTION AND REPAIR" procedure.
NO
- This is a intermittent problem caused by poor contact of component or Control Unit.
- Thoroughly check the looseness, poor connection, bent, corrosion, contamination, deformation or damage of connector.
- Repair or replace as necessary and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
