Monitor Scantool data
WARNING: This page is about a different variant/trim than selected.
- Connect Scantool with diagnostic connector.
- Warm up the engine to normal engine temperature after engine starts.

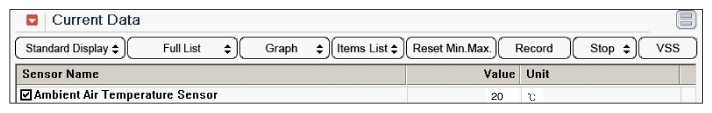

- Select and monitor "Ambient Air Temperature sensor" parameter.
(Fig.1) Parameter of "Ambient Sensor" will be fixed at 20°C (68°F), if there is any fault in Ambient Sensor.
- Is the ambient sensor abnormal?
YES
- Go to "INSPECTION AND REPAIR " procedure.
NO
- This is a intermittent problem caused by poor contact of component or Control Unit
- Thoroughly check the looseness, poor connection, bent, corrosion, contamination, deformation or damage of connector.
- Repair or replace as necessary and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
