Monitor Scantool data
WARNING: This page is about a different variant/trim than selected.
- Connect Scantool with diagnostic connector.
- Warm up the Engine to normal Engine temperature after Engine starts.
- Select and monitor "In-Car Temperature Sensor 1" parameter.

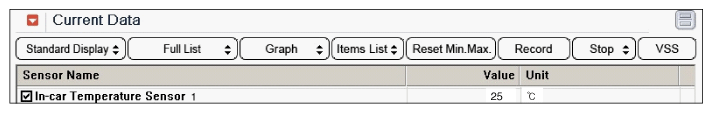

(Fig.1) Parameter of "In-Car Temp.Sensor 1" will be fixed at 25°C (77°F) if there is any fault with the In-Car Sensor.
- Is the In-Car Temperature Sensor normal?
YES
- This is a intermittent problem caused by poor contact of component or A/C Control Unit.
- Thoroughly check the looseness, poor connection, bent, corrosion, contamination, deformation or damage of connector.
- Repair or replace as necessary and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Substitute with a known good In-Car Temp. Sensor and check for proper operation. If the problem is corrected, replace In-Car Temp. Sensor and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
