Monitor Scantool Data

WARNING: This page is about a different variant/trim than selected.
  1. Connect GDS.
  2. IG "ON" and engine "OFF".
  3. Select "DTC Analysis" mode.
  4. After erase DTC, keep the vehicle condition within "the enable conditions" (Refer to "DTC DETECTING CONDITION " table).

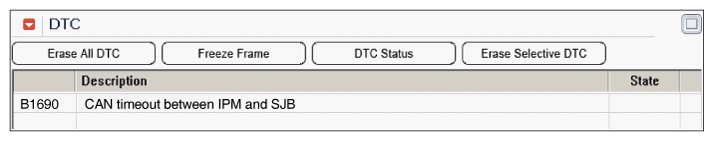

    Fig 1: Screen Display - CAN Timeout Between IPM And SJB
    G10602677Courtesy of HYUNDAI MOTOR AMERICA
  5. Is the same DTC occurred again?

    YES

    • Go to next procedure.

    NO

    • Fault is intermittent caused by poor contact in BCM's and/or SJB's connector or was repaired and IPM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
