Diagnostic Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

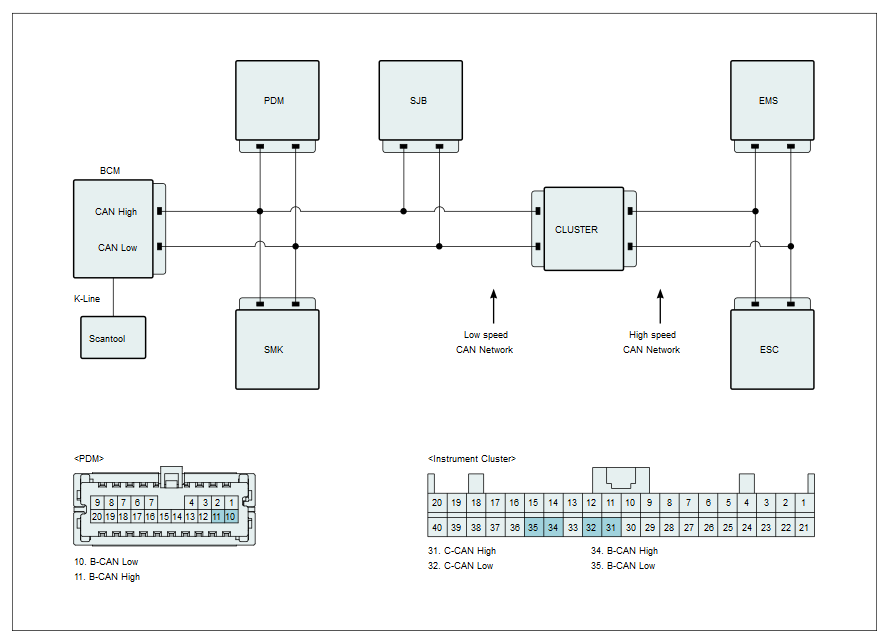

Fig 1: CAN Communication Unit Diagram With PDM & Instrument Cluster Connector End Views
G10602673Courtesy of HYUNDAI MOTOR AMERICA

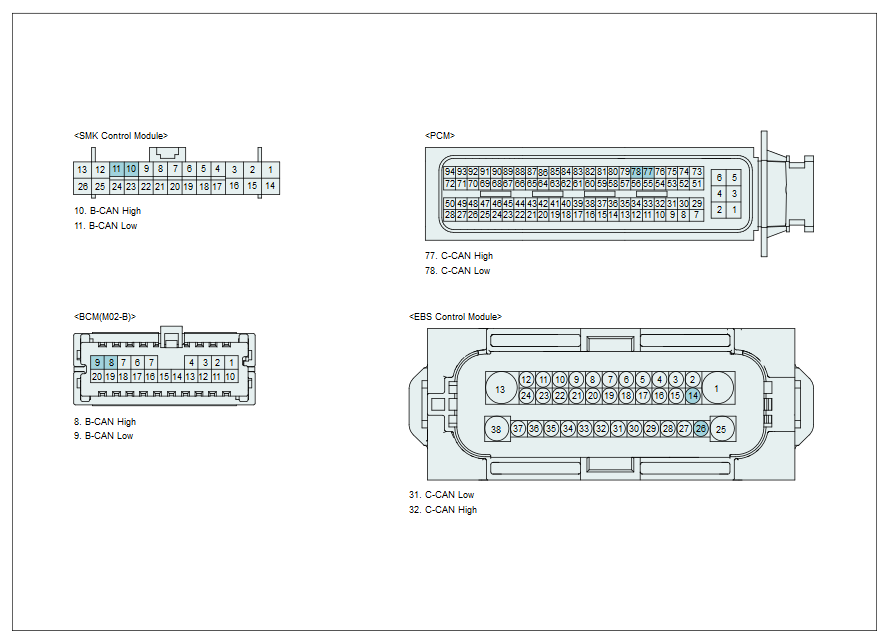

Fig 2: Body Control Module, Smart Key, PCM & EBS Control Module Connector End Views
G10602674Courtesy of HYUNDAI MOTOR AMERICA
