Components and Components Location: Components

WARNING: This page is about a different variant/trim than selected.

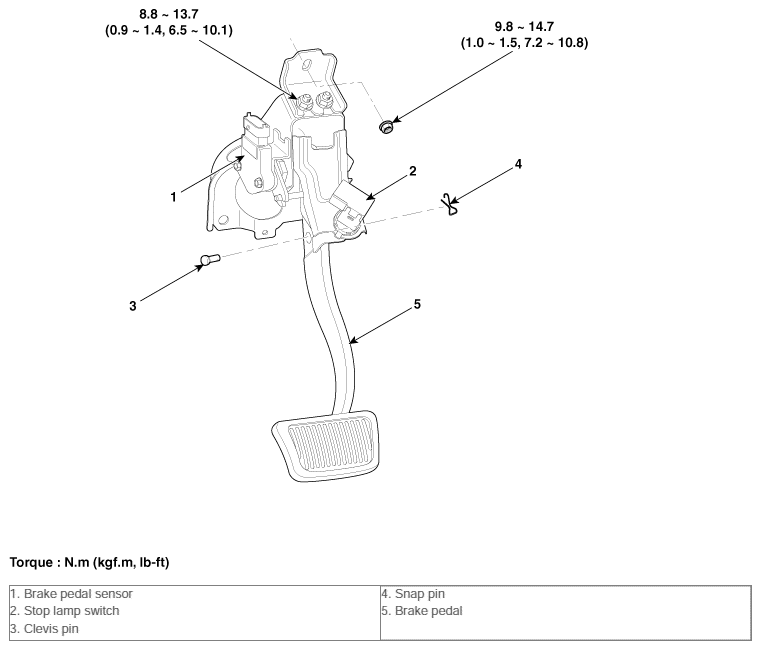

Fig 1: Identifying Brake Pedal Components With Torque Specifications
G10589274Courtesy of HYUNDAI MOTOR AMERICA
