Power Circuit Inspection
WARNING: This page is about a different variant/trim than selected.

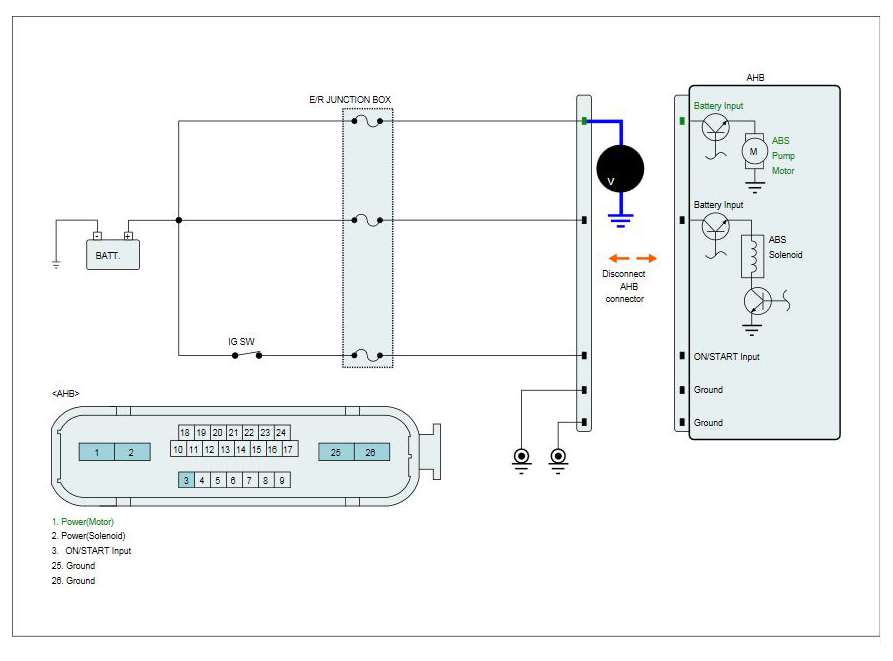

■ Open or Short Check
- IG "ON".
- Measure voltage between motor power terminal of the AHB harness connector and chassis ground.
Specification: Approx. B+
- Is the measured value within specifications?
YES
- Go to "GROUND CIRCUIT INSPECTION " procedure.
NO
- Check for open or blown fuse referring to "Circuit Diagram".
- Repair open or short in power circuit between battery and AHB harness connector and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
