Section 114 (Antilock Brake System/Electronic Stability Control System Diagnosis (HEV))
>>
DTC C2380: Valve Relay Error
>>
General Information
>>
Diagnostic Circuit Diagram
Diagnostic Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

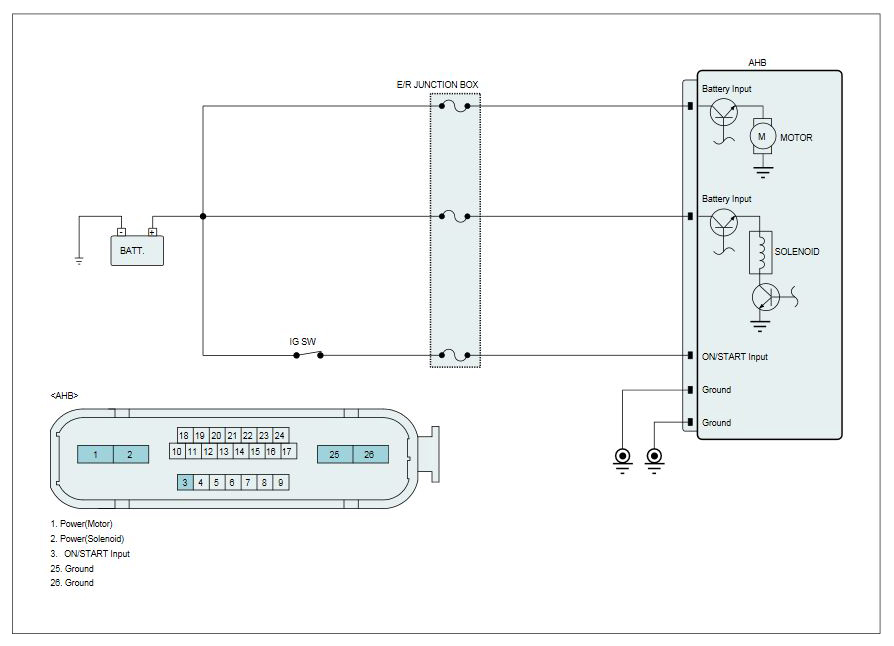

Fig 1: AHB And E/R Junction Box Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
