Signal Circuit Inspection

WARNING: This page is about a different variant/trim than selected.

■ Open Check

IG "OFF".
Disconnect AHB and MCU connector.
Measure resistance between CAN HIGH Terminal (LOW Terminal) of the AHB harness connector and CAN HIGH Terminal (LOW Terminal) of the MCU harness connector.
Specification: Approx. below 1Ω

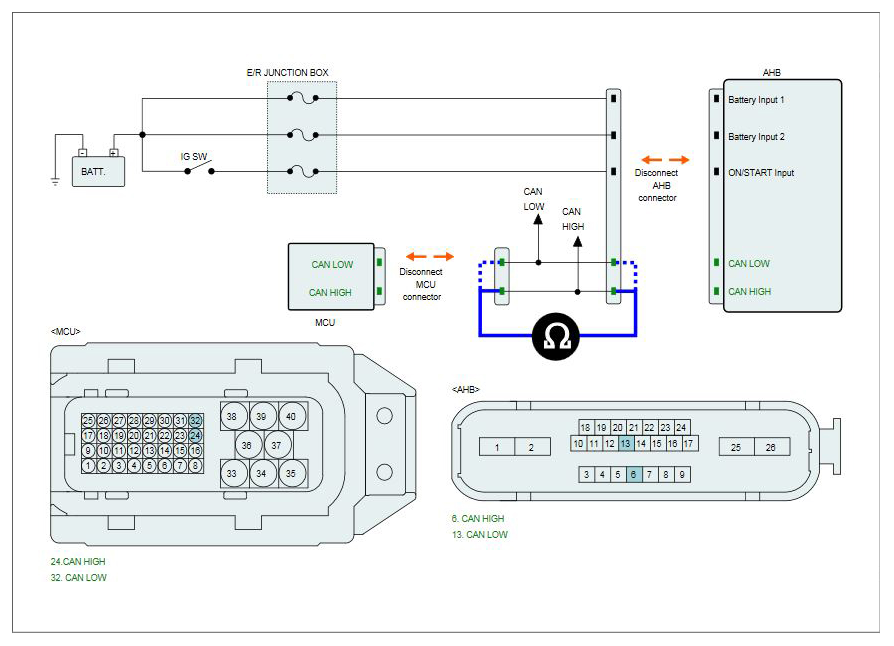

Fig 1: Measuring Resistance Between CAN High Terminal (Low Terminal) Of AHB Harness Connector And CAN High Terminal (Low Terminal) Of MCU Harness Connector
Courtesy of HYUNDAI MOTOR AMERICA
Is the measured value within specifications?
YES
- Go to "COMPONENT INSPECTION " procedure.
NO
- Repair open in CAN BUS line between AHB harness connector and MCU harness connector and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
