Signal Circuit Inspection

WARNING: This page is about a different variant/trim than selected.

■ Open Check

IG "OFF".
Disconnect AHB and PCM (TCM) connector.
Measure resistance between CAN HIGH Terminal (LOW Terminal) of the AHB harness connector and CAN HIGH Terminal (LOW Terminal) of the PCM (TCM) harness connector.
Specification: Approx. below 1Ω

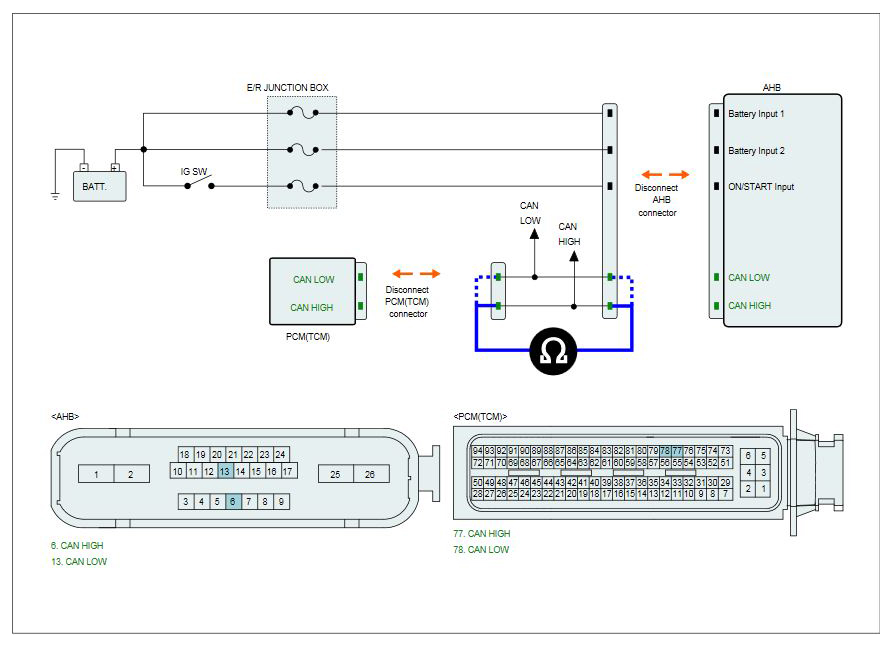

Fig 1: Measuring Resistance Between Of AHB Harness Connector And PCM (TCM) Harness Connector
Courtesy of HYUNDAI MOTOR AMERICA
Is the measured value within specifications?
YES
- Go to "COMPONENT INSPECTION " procedure.
NO
- Repair open in CAN BUS line between AHB harness connector and PCM (TCM) harness connector and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
