Section 114 (Antilock Brake System/Electronic Stability Control System Diagnosis (HEV))
>>
DTC C1612: CAN Time-Out TCM
>>
General Information
>>
Component Location
Component Location
WARNING:
This page is about a different variant/trim than selected.

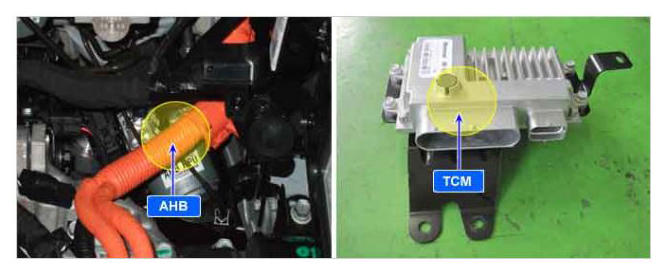

Fig 1: AHB And TCM Component Location
Courtesy of HYUNDAI MOTOR AMERICA
