Monitor GDS Data

■ Brake Pedal Travel Sensor Calibration

1. IG "ON", ENG "OFF"..
2. Stand the vehicle on a flat ground without any inclination.
3. Don't press brake pedal.
4. Connect GDS to Data Link Connector (DLC).
5. Perform Brake Pedal Travel Sensor Calibration. (Fig 1).

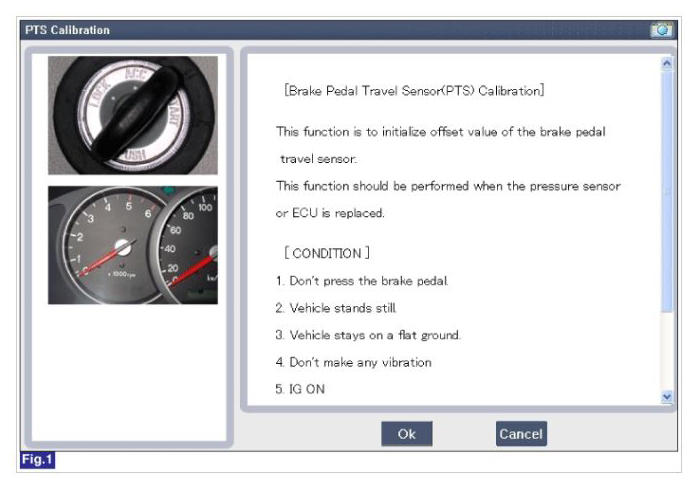

   Fig 1: Screen Display - Brake Pedal Travel Sensor Calibration

   Courtesy of HYUNDAI MOTOR AMERICA
6. Is "Brake Pedal Travel Sensor Calibration" completed normally?

   YES

   • Go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   NO

   • According to negative response from AHB, inspect wiring harness, BLS, etc.
   • If above check is OK, substitute with a known-good brake pedal pressure sensor and check for proper operation. If problem is corrected, replace brake pedal pressure sensor and then go to "VERIFICATION OF VEHICLE REPAIR " procedure
