Power Circuit Inspection

WARNING: This page is about a different variant/trim than selected.

■ Open or Short Check

IG "ON".
Measure voltage between PDF power terminal of the Brake Pedal Travel sensor harness connector and chassis ground.
Specification: Approx. 5V

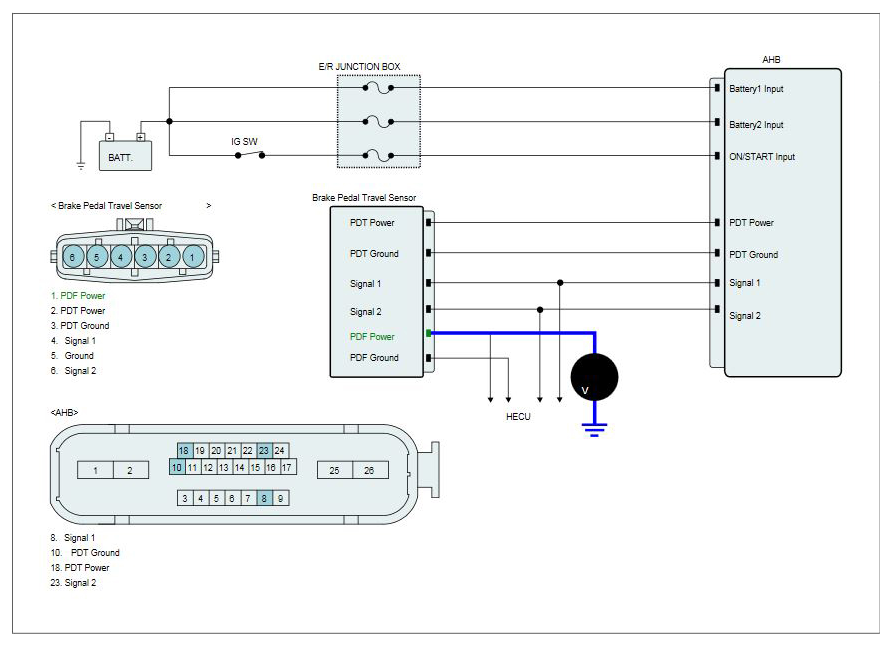

Fig 1: Measuring Voltage Between PDF Power Terminal Of Brake Pedal Travel Sensor Harness Connector And Chassis Ground
Courtesy of HYUNDAI MOTOR AMERICA
Is the measured value within specifications?
YES
- Go to "GROUND CIRCUIT INSPECTION " procedure.
NO
- Repair open or short in power circuit between the Brake Pedal Travel sensor harness connector and AHB ECU harness connector and then, go to "VERIFICATION OF VEHICLE REPAIR "
