Section 113 (General Information (Engine Electrical System) (HEV)): Specifications
WARNING: This page is about a different variant/trim than selected.
IGNITION SYSTEM SPECIFICATIONS
| Items | Specification | |
|---|---|---|
| Ignition coil | Primary resistance | 0.62 ± 10 % (Ω) |
| Secondary resistance | 7.0 ± 15 % (kΩ) | |
| Spark plugs | Type | FXU16HR11 |
| Gap | 1.0 ~ 1.1 mm (0.0394 ~ 0.0433 in.) | |
CHARGING SYSTEM SPECIFICATIONS
| Items | Specification | |
|---|---|---|

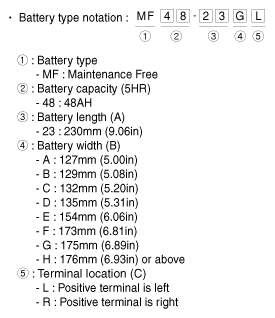

| Auxiliary 12V battery | Type | 54-28GR |
| Cold cranking amperage [at -18°C (-0.4°F)] | 600A | |
| Reserve capacity | 110 min. | |
| Specific gravity [at 20°C (68°F)] | 1.28 ± 0.01 | |
CAUTION:
- COLD CRANKING AMPERAGE is the amperage a battery can deliver for 30 seconds and maintain a terminal voltage of 7.2V or greater at a specified temperature.
- RESERVE CAPACITY RATING is amount of time a battery can deliver 25A and maintain a minimum terminal voltage of 10.5V at 26.7°C (80.1°F).
