Section 110 (Charging System (HEV))
>>
Auxiliary 12V Battery
>>
Repair Procedures
>>
Inspection
>>
Battery Diagnostic Flow
Battery Diagnostic Flow
WARNING:
This page is about a different variant/trim than selected.

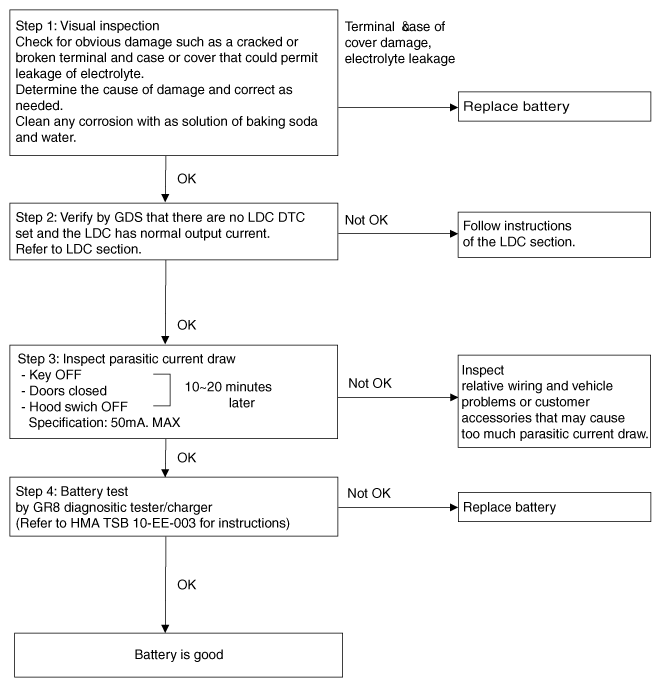

Fig 1: Battery Diagnostic Flow Diagram
Courtesy of HYUNDAI MOTOR AMERICA
