Diagnostic Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

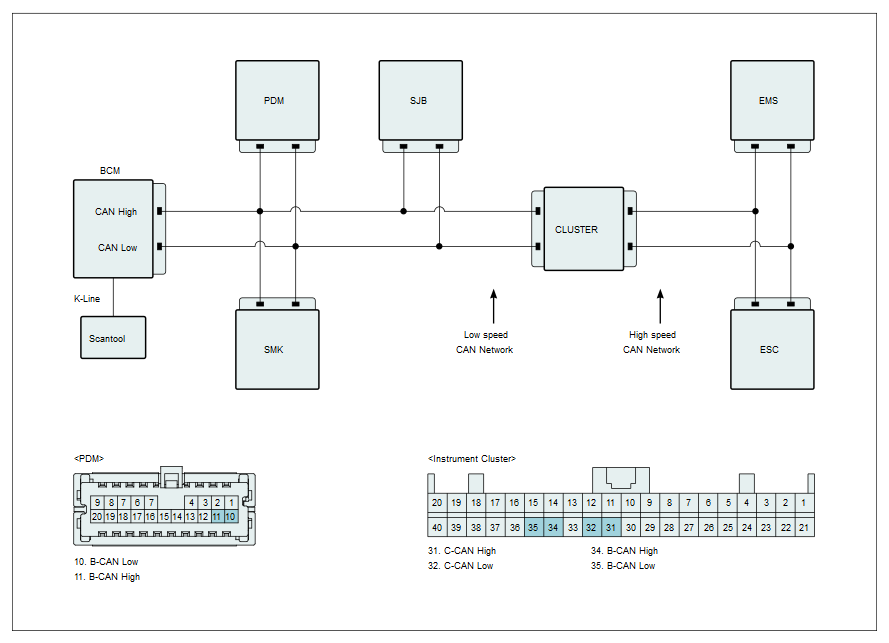

Fig 1: BCM And CLU Circuit Diagram With Connector End Views
G10602873Courtesy of HYUNDAI MOTOR AMERICA

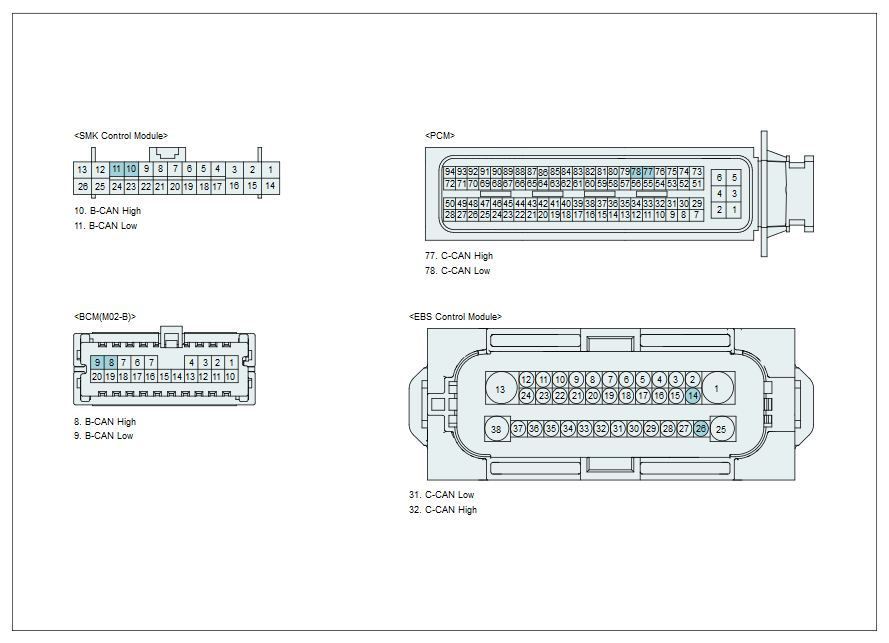

Fig 2: Identifying SMK, PCM, BCM And EBS Connector End Views
G10602874Courtesy of HYUNDAI MOTOR AMERICA
