Diagnostic Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

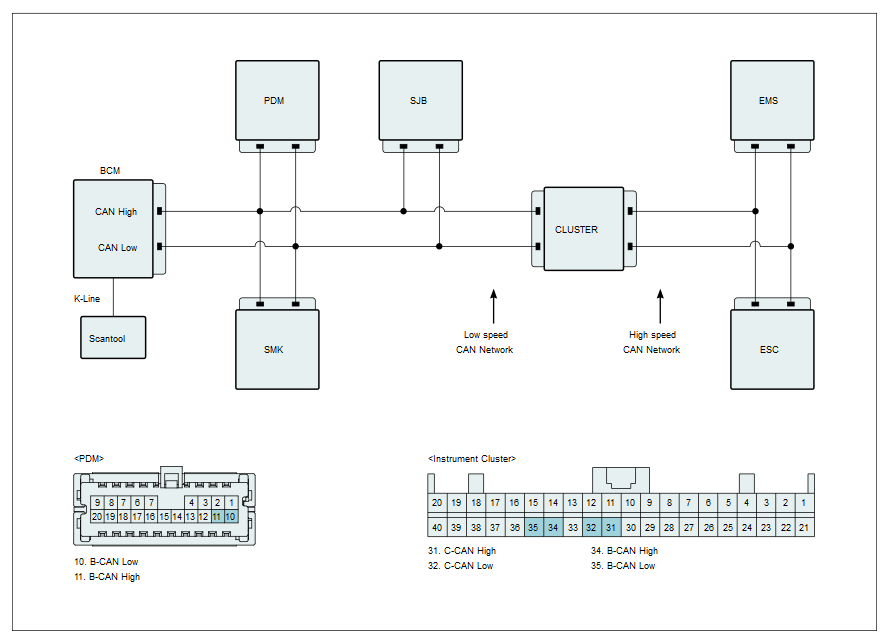

Fig 1: BCM And CLU Communication Diagram & Connector End Views
G10602869Courtesy of HYUNDAI MOTOR AMERICA

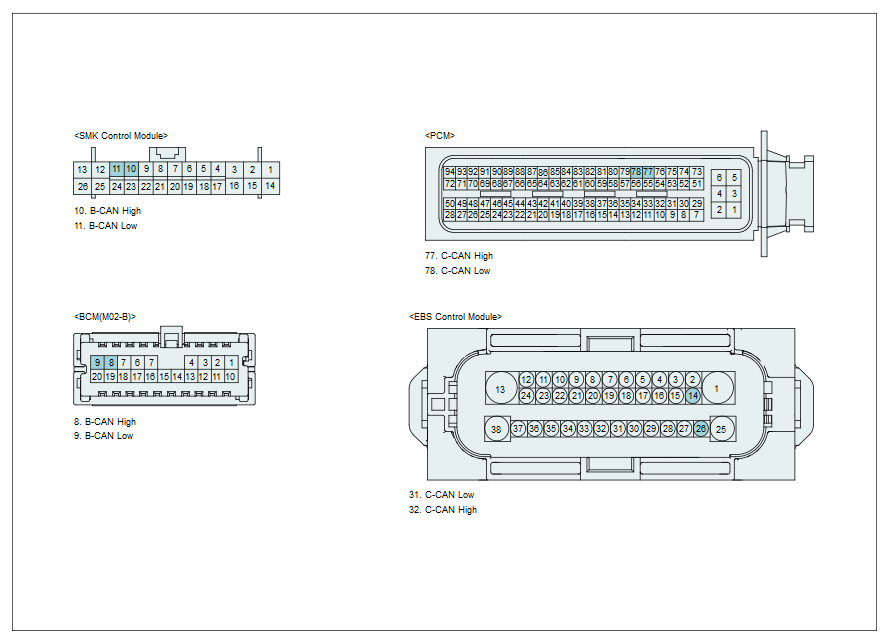

Fig 2: Identifying SMK, PCM, BCM, And EBS Connector End Views
G10602870Courtesy of HYUNDAI MOTOR AMERICA
