Section 107 (MULTIFUNCTION Switch (HEV))
>>
Components and Components Location
>>
Inspection
>>
Turn Signal Switch
Turn Signal Switch
WARNING:
This page is about a different variant/trim than selected.

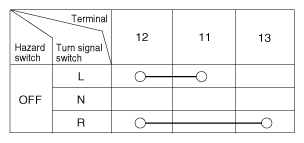

Fig 1: Turn Signal Switch Connector Terminal Continuity Chart
Courtesy of HYUNDAI MOTOR AMERICA
