Repair Procedures: Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Remove roof trim.
  2. Remove Roller blind support lower assembly (A) loosening Roller blind support lower assembly mounting screws.
    Fig 1: Identifying Roller Blind Support Lower Assembly
    G10589685Courtesy of HYUNDAI MOTOR AMERICA
  3. Holding roller blind as shown in the illustration and turning it as arrow direction shows, remove roller blind (A) from shoe (B).
    CAUTION:
    • Be careful not to damage roller blind shoe.
    • Make sure roller blind is open completely.
    Fig 2: Turning Lower Blind
    G10589686Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove roller blind (A) pulling it as arrow direction shown in illustration.
    CAUTION:
    • When removal of the roller blind be careful not to bump against body with edge side (B) because it develops tension.

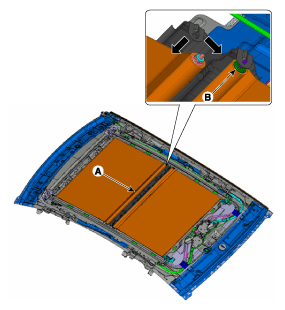

    Fig 3: Pulling Roller Blind
    G10589687Courtesy of HYUNDAI MOTOR AMERICA
  5. Installation is reverse order of the removal procedure.
    CAUTION:
    • Install roller blind after pressing and turning edge side 19 ~ 21 turn anti-clockwise and releasing when the tension disappear.
