Repair Procedures: Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Remove mechanism assembly.

    (Refer to "MECHANISM RAIL ")

  2. Remove front roller blind shoe (A) and rear roller blind shoe (B) off the rail.

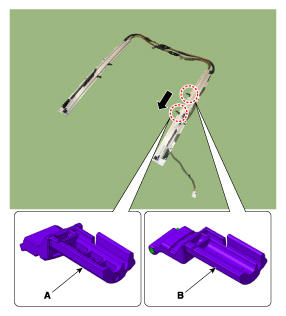

    Fig 1: Identifying Roller Blind Shoe And Rear Roller Blind Shoe
    G10589746Courtesy of HYUNDAI MOTOR AMERICA
  3. Installation is reverse order of the removal procedure.
