Glass Step Alignment

WARNING: This page is about a different variant/trim than selected.

Perform considerable step alignment after replacing movable glass.

Fig 1: Identifying Movable Glass
Courtesy of HYUNDAI MOTOR AMERICA

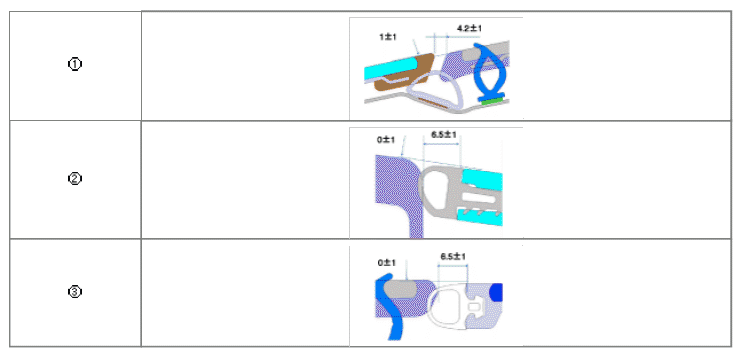

Fig 2: Movable Glass Position Chart
Courtesy of HYUNDAI MOTOR AMERICA
Perform height adjustment releasing height adjust screw (A) a bit.
CAUTION:
- Be careful not to damage screws.
Fig 3: Identifying Height Adjust Screw
Courtesy of HYUNDAI MOTOR AMERICA
