Repair Procedures: Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Open movable glass completely pressing panorama sunroof switch.
  2. Remove front cover assembly (A) using driver.
    Fig 1: Identifying Front Cover Assembly (1 Of 2)
    G10589741Courtesy of HYUNDAI MOTOR AMERICA

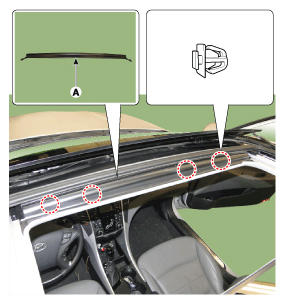

    Fig 2: Identifying Front Cover Assembly (2 Of 2)
    G10589742Courtesy of HYUNDAI MOTOR AMERICA
  3. Installation is reverse order of the removal procedure.
    NOTE:
    • When installing front cover assembly after inserting one end at the bottom groove of mechanism and other end to diagonal direction then push forward.
      Fig 3: Pushing Front Cover Assembly Forward
      G10589743Courtesy of HYUNDAI MOTOR AMERICA
