Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove roof trim.
  2. Remove movable glass.

    (Refer to "MOVABLE GLASS ")

  3. Remove mechanism assembly.

    (Refer to "MECHANISM RAIL ")

  4. Remove decoration cover assembly (A).

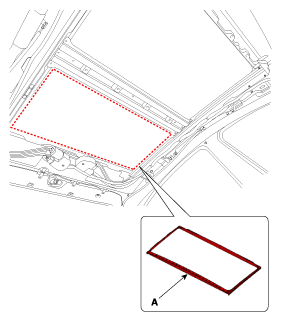

    Fig 1: Identifying Decoration Cover Assembly
    G10589720Courtesy of HYUNDAI MOTOR AMERICA
