Components and Components Location: Components

WARNING: This page is about a different variant/trim than selected.

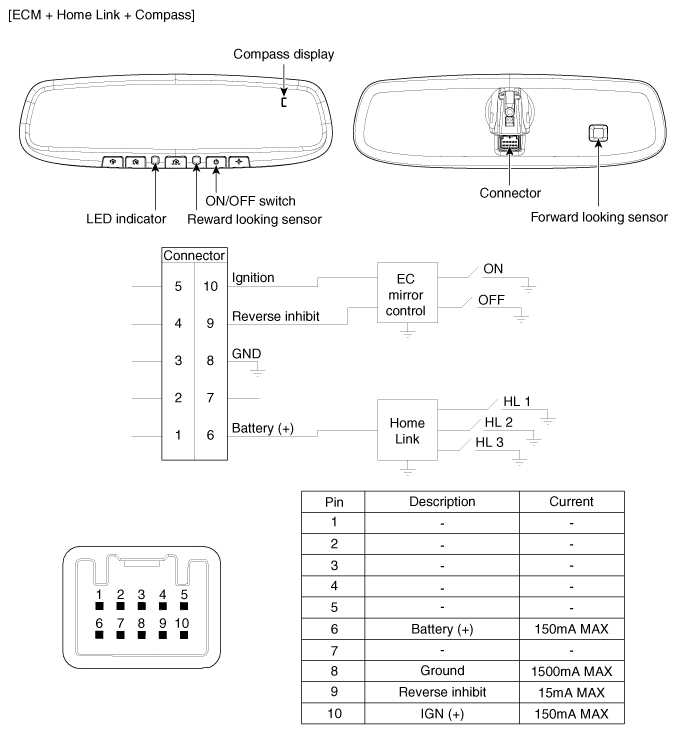

Fig 1: Identifying Electro Chromatic Inside Rear View Mirror Components With Connector End View
G10590309Courtesy of HYUNDAI MOTOR AMERICA
