Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the front bumper.

    (Refer to the "FRONT BUMPER ")

  3. Loosening the head lamp mounting bolts (2 EA) and disconnect the head lamp connector.

    Then, remove the head lamp assembly (A).

    NOTE:
    • Take care not to scratch the head lamp lens or fender.

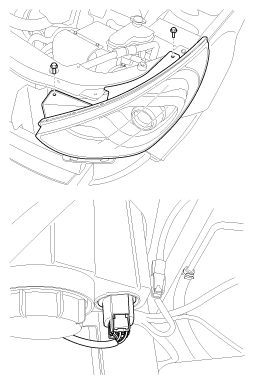

    Fig 1: Identifying Head Lamp Assembly And Mounting Bolts
    G10590336Courtesy of HYUNDAI MOTOR AMERICA
    NOTE: Take care that holding clip (A) is not to be damaged.
    Fig 2: Identifying Holding Clip
    G10590337Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the dust caps from the head lamp assembly after turning in the counterclockwise direction.
    1. Head Lamp (High) Cap
    2. Head Lamp (Low) Cap
    3. Turn Signal Lamp
    Fig 3: Identifying Dust Caps Of Head Lamp Assembly
    G10590338Courtesy of HYUNDAI MOTOR AMERICA
