Head Lamp Fogging

WARNING: This page is about a different variant/trim than selected.

Check the below instruction procedure when the head lamp is fogged.

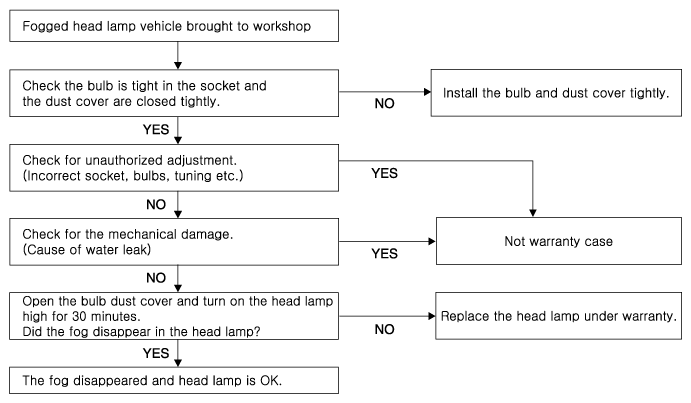

Fig 1: Head Lamp Fogging Flow Chart
G10590345Courtesy of HYUNDAI MOTOR AMERICA
