Head Lamp And Fog Lamp Aiming Point

WARNING: This page is about a different variant/trim than selected.

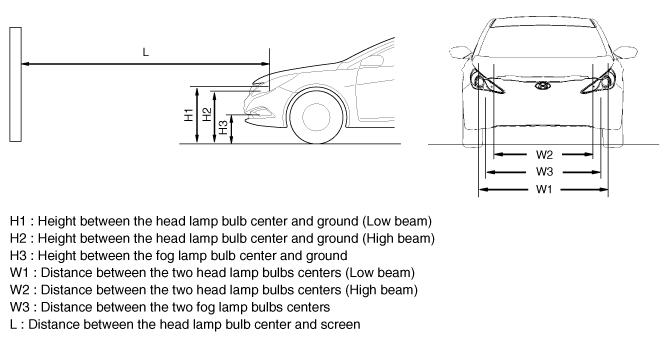

Fig 1: Checking Head Lamp And Fog Lamp Aiming Points

Courtesy of HYUNDAI MOTOR AMERICA

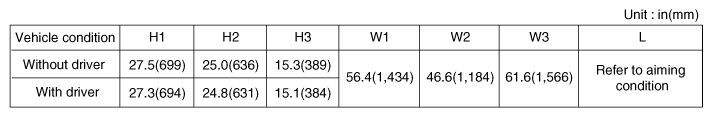

Fig 2: Vehicle Condition Chart (Aiming)

Courtesy of HYUNDAI MOTOR AMERICA

Head Lamp (Low beam)
1. Turn the low beam on without driver aboard.
2. The cut-off line should be projected in the cut-off line shown in the illustration.
3. When aiming the low beam, vertical aiming should be adjusted after adjusting the horizontal aiming.
4. If head lamp leveling device is equipped, adjust the head lamp leveling device switch with 0 positions.

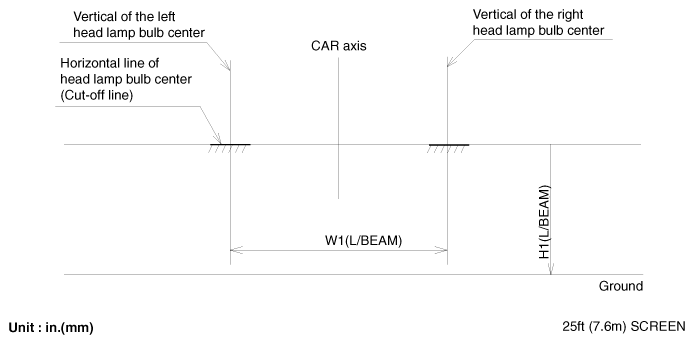

Fig 3: Head Lamp (Low Beam) Cut-Off Line
Courtesy of HYUNDAI MOTOR AMERICA
Turn the front fog lamp on without the driver aboard.
The cut-off line should be projected in the cut-off line shown in the illustration.

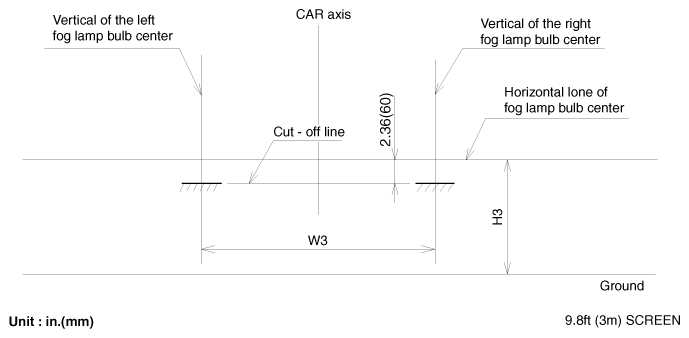

Fig 4: Front Fog Lamp Cut-Off Line
Courtesy of HYUNDAI MOTOR AMERICA
