Components and Components Location: Components

WARNING: This page is about a different variant/trim than selected.

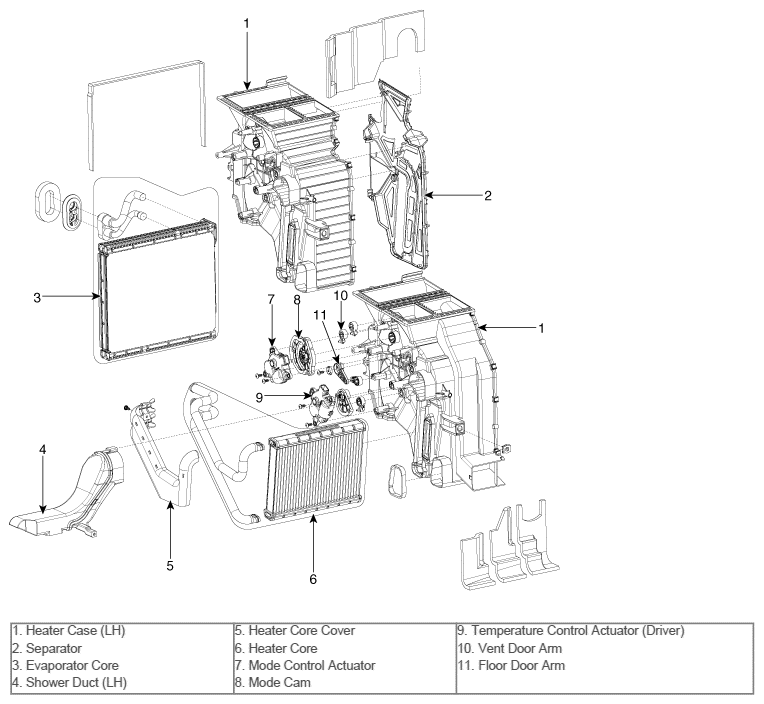

Fig 1: Exploded View Of Heater Unit (1 Of 2)
G10590512Courtesy of HYUNDAI MOTOR AMERICA

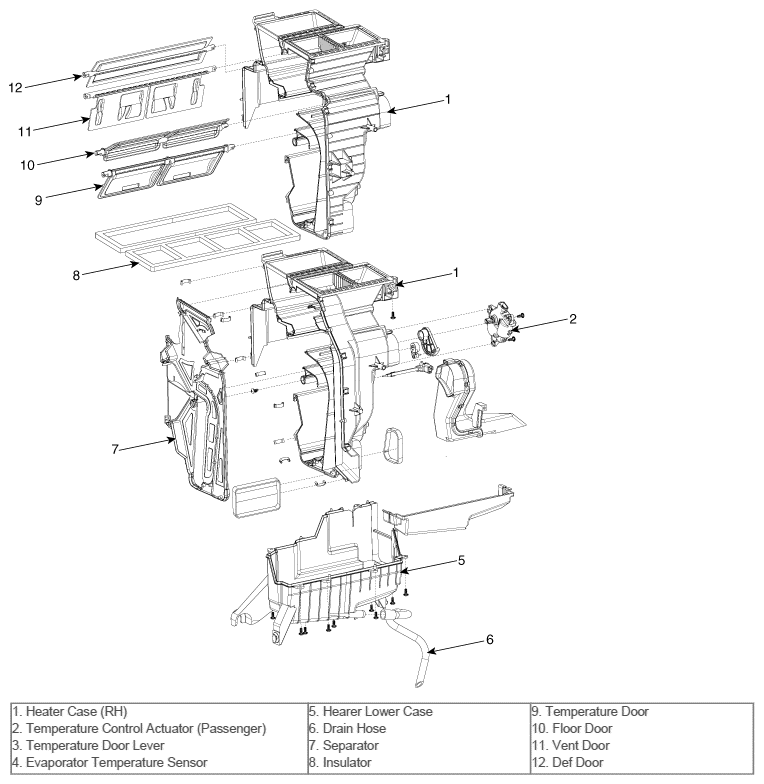

Fig 2: Exploded View Of Heater Unit (2 Of 2)
G10590513Courtesy of HYUNDAI MOTOR AMERICA
