[Warning Lamp]

WARNING: This page is about a different car, the 2017 Hyundai Sonata and 2016 Hyundai Sonata. However, it is still accessible from the selected car via links, so may be relevant.

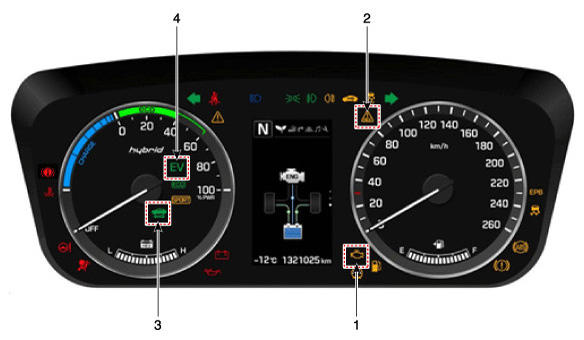

Fig 1: Warning Lamp
G12059526G12059527G12059528G12059529G12059530Courtesy of HYUNDAI MOTOR AMERICA
Items Description Related Control Module
1. MIL Lamp
G12059527
  • Lamp ON: Engine Management System (EMS) fault
ECM, TCM, OPU, HCU, MCU, BMS, AAF
2. Service Lamp
G12059528
  • Lamp ON: Hybrid related system fault
HCU, MCU, BMS, LDC, OPU
3. READY Lamp
G12059529
  • After ignition START
    • Lamp ON: HEV in normal condition is ready to drive (Engine may or may not start)
    • Lamp OFF: HEV is not ready to drive
  • During driving
  • Lamp ON: HEV is ready to drive
  • Lamp Blinking: HEV in faulty condition (HEV in limited operating mode)
  • Lamp OFF: HEV is not ready to drive
HCU
4. EV MODE Lamp
G12059530
  • Lamp ON: EV mode (Electric motor only)
  • Lamp OFF: HEV mode (Engine running)
HCU
