Components And Components Location: Components

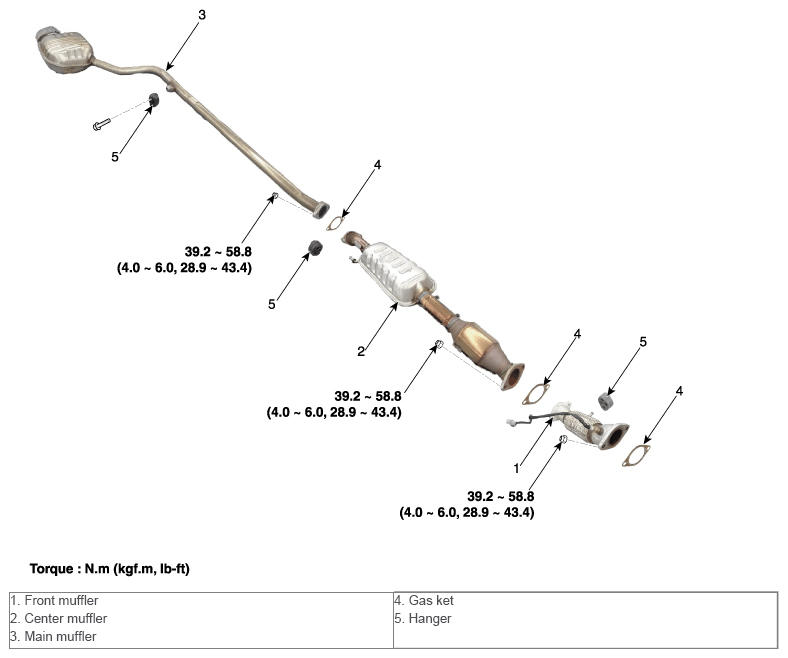

Fig 1: Muffler And Catalytic Converter Components With Torque Specifications

G10566456

Courtesy of HYUNDAI MOTOR AMERICA
