Components And Components Location: Components

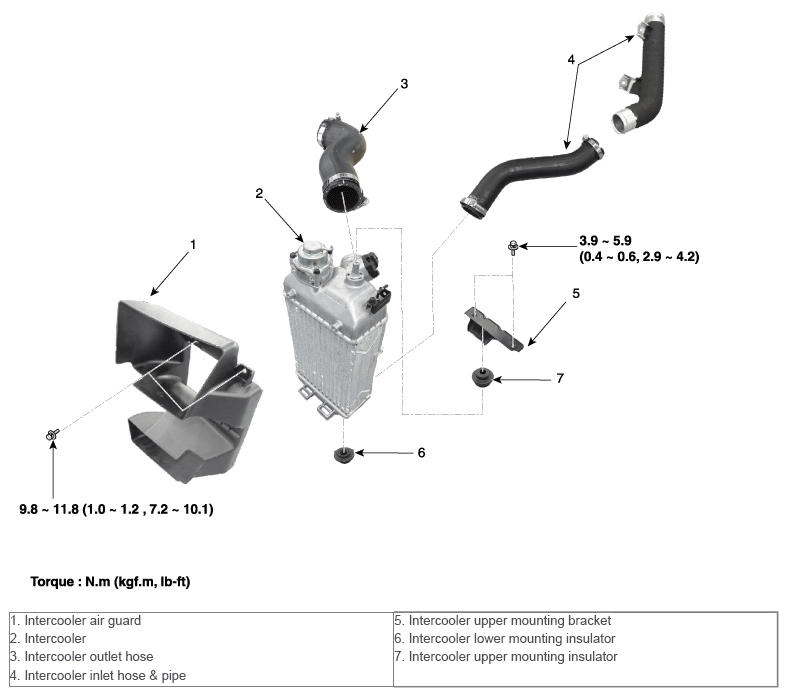

Fig 1: Intercooler Components With Torque Specifications

G10566444

Courtesy of HYUNDAI MOTOR AMERICA
