Home >> Hyundai >> 2015 >> Sonata Eco >> Repair and Diagnosis >> Engine Mechanical >> Blowers, Superchargers & Turbochargers >> Intake & Exhaust System - 1.6L (Except HEV) >> Air Cleaner >> Components And Components Location >> Components

Components And Components Location: Components

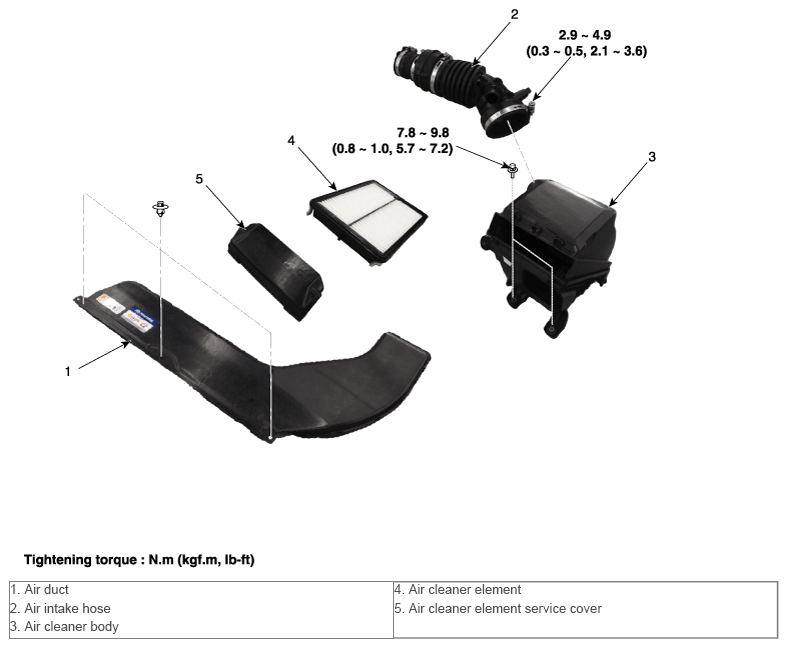

Fig 1: Air Cleaner Components With Torque Specifications

G10566418

Courtesy of HYUNDAI MOTOR AMERICA
