Special Service Tools
| Tool (Number and Name) | Illustration | Application |
|---|---|---|
| RKE Battery Checker (09954-2P100) |
Measuring the RKE battery voltage | |
| Correction jig for LDWS or LKAS (09890-3V100) |
Correction of LDWS (Lane Departure Warning System) or LKAS (Lane keeping assist system) | |
| BSD Unit Correction Tool Set (09958-3T000) |
Used to correct the BSD unit. | |

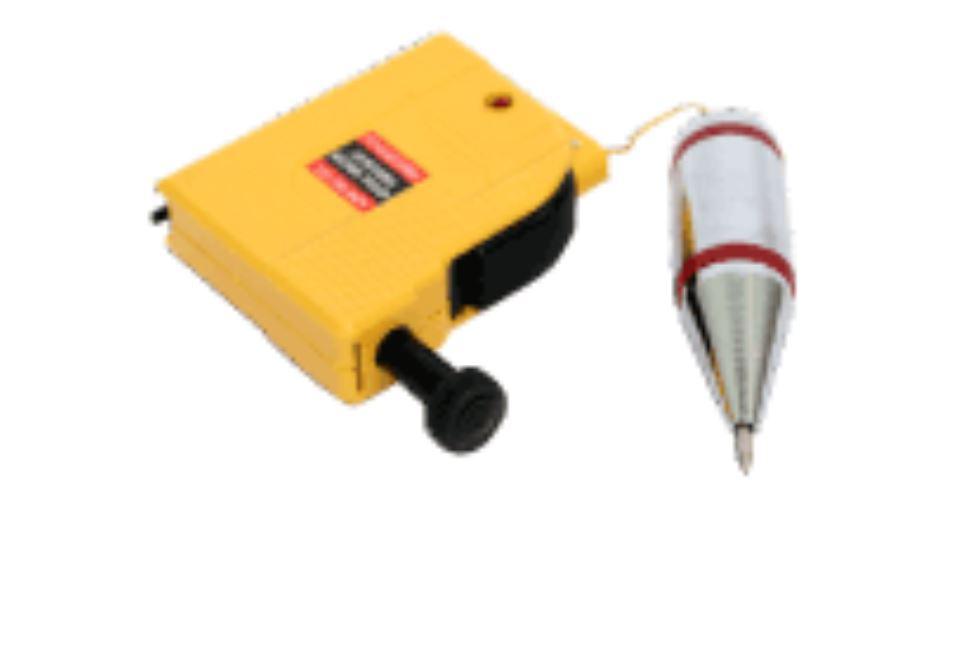

| Vertical Plumb (09958-3T010) |
Used to correct the BSD unit.Used to create a center line. Used to correct the BSD unit.Used to create a center line. (Use with 09958-3T020, 09958-3T030, 09958-3T040, 09958-3T060) |
|
| Optical Receiver (09958-3T020) |
Used to correct the BSD unit.Used to create a center line. (Use with 09958-3T010, 09958-3T030, 09958-3T040, 09958-3T060) |
|
| Front Setting Jig (09958-3T030) |
Used to correct the BSD unit.Used to create a center line. (Use with 09958-3T010, 09958-3T020, 09958-3T040, 09958-3T060) |
|
| Vertical Measuring Device Plate (09958-3T040) |
Used to correct the BSD unit.Used to create a center line. (Use with 09958-3T010, 09958-3T020, 09958-3T030, 09958-3T060) |
|
| Angle Measuring Plate (09958-3T050) |
Used to correct the BSD unit.Used to measure the horizontal angle. (Use with 09958-3T070, 09958-3T080, 09958-3R090) |
|
| Vertical Measuring Device (09958-3T060) |
Used to correct the BSD unit.Used to create a center line. (Use with 09958-3T010, 09958-3T020, 09958-3T030, 09958-3T040) |
|

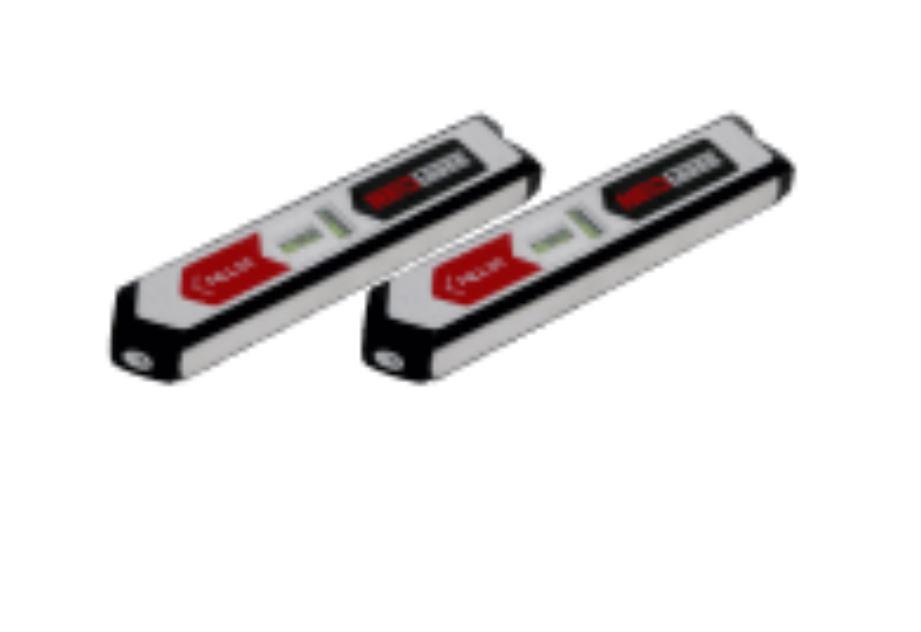

| Spirit Level (09958-3T070) |
Used to correct the BSD unit.Used to measure the horizontal angle. (Use with 09958-3T050, 09958-3T080, 09958-3R090) |
|
| BSD Unit Fixing Adaptor (09958-3T080) |
Used to correct the BSD unit.Used to measure the horizontal angle. (Use with 09958-3T050, 09958-3T070, 09958-3R090) |
|

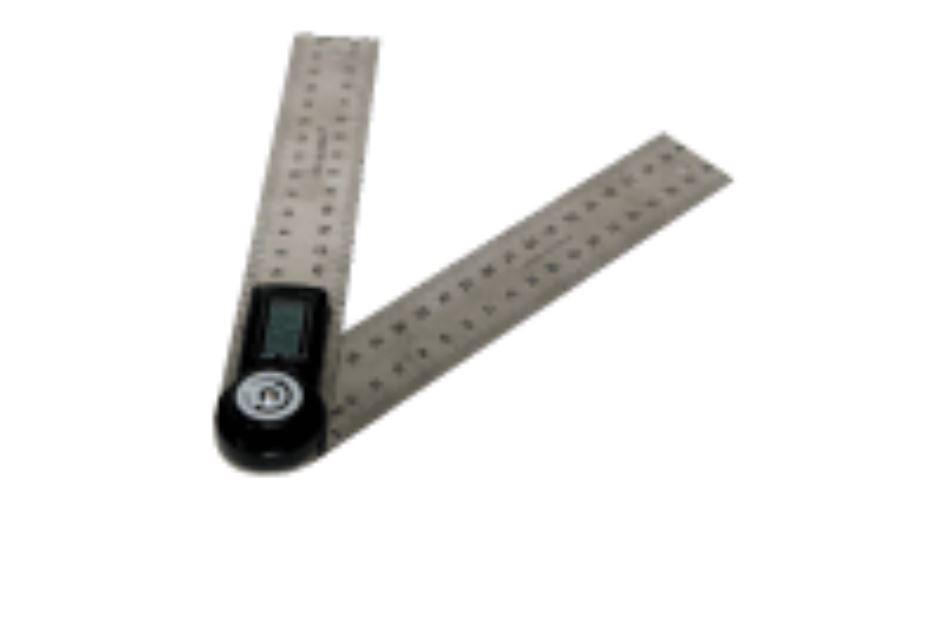

| Digital Protractor (09958-3T090) |
Used to correct the BSD unit.Used to measure the horizontal angle. (Use with 09958-3T050, 09958-3T070, 09958-3R080) |
|
| Digital Inclinometer (09958-3T100) |
Used to correct the BSD unit.Used to measure the vertical angle. |
