SRS Control Module Connector End View (F01)

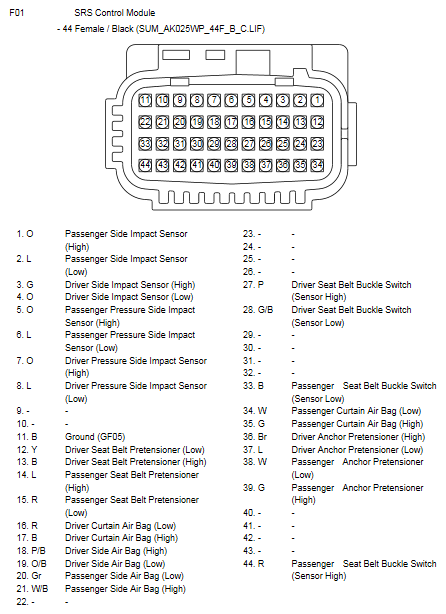

Fig 1: SRS Control Module Connector End View (F01)

G10773865

Courtesy of HYUNDAI MOTOR AMERICA
