Rear Seat Warmer Module Connector End View (F20)

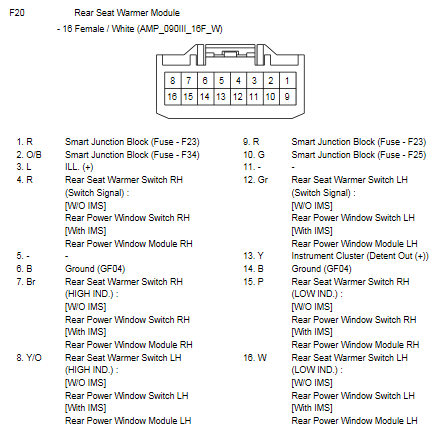

Fig 1: Rear Seat Warmer Module Connector End View (F20)

G10773882

Courtesy of HYUNDAI MOTOR AMERICA
