Front Console Switch Connector End View (F07)

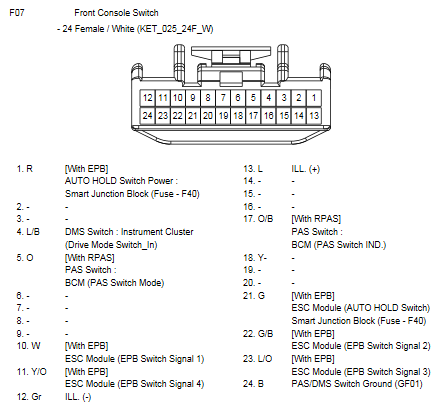

Fig 1: Front Console Switch Connector End View (F07)

G10773872

Courtesy of HYUNDAI MOTOR AMERICA
