Power Window Main Switch (W/O IMS) Connector End View (D03)

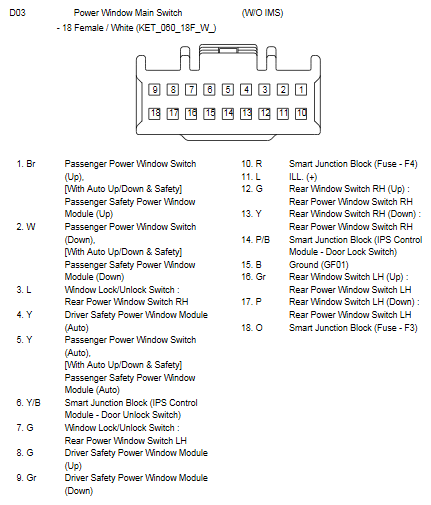

Fig 1: Power Window Main Switch (W/O IMS) Connector End View (D03)

G10773916

Courtesy of HYUNDAI MOTOR AMERICA
