Passenger Power Window Switch (W/O IMS) Connector End View (D23)

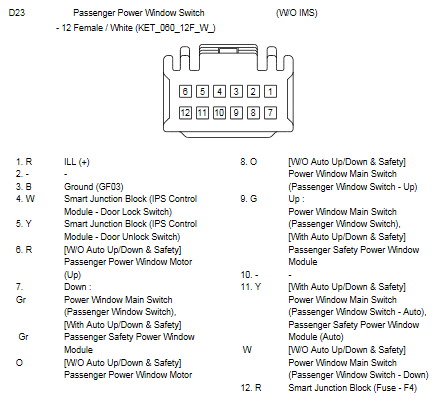

Fig 1: Passenger Power Window Switch (W/O IMS) Connector End View (D23)

G10773929

Courtesy of HYUNDAI MOTOR AMERICA
