Circuit Diagram

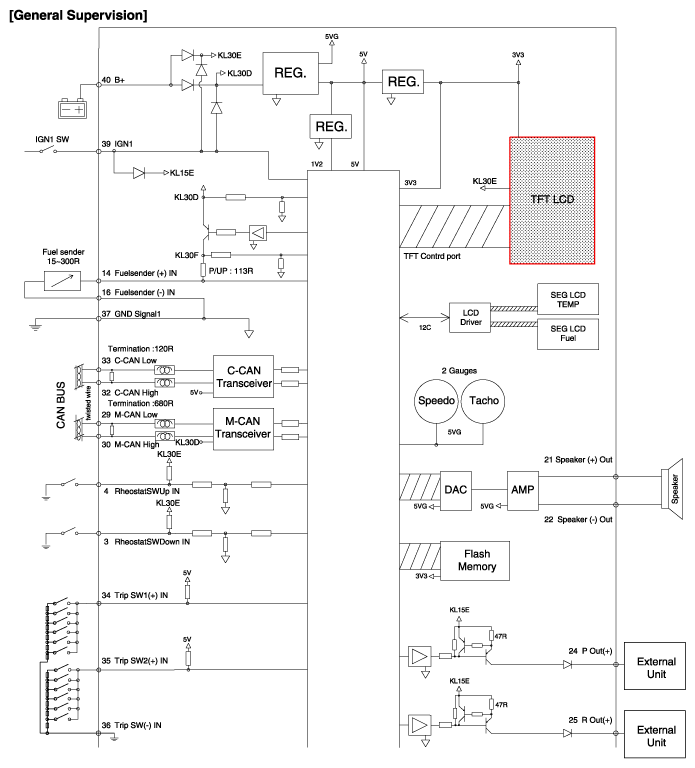

Fig 1: REG. Circuit Diagram (1 Of 3)

Courtesy of HYUNDAI MOTOR AMERICA

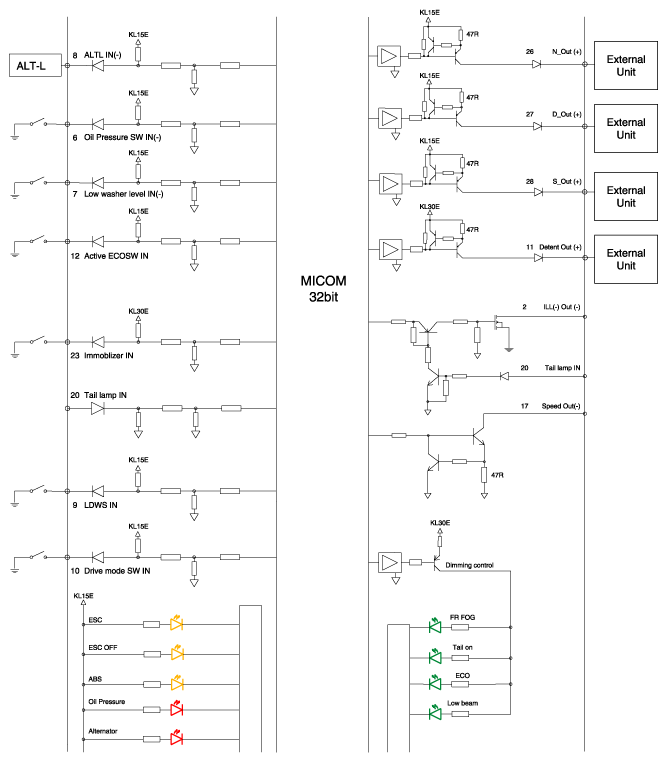

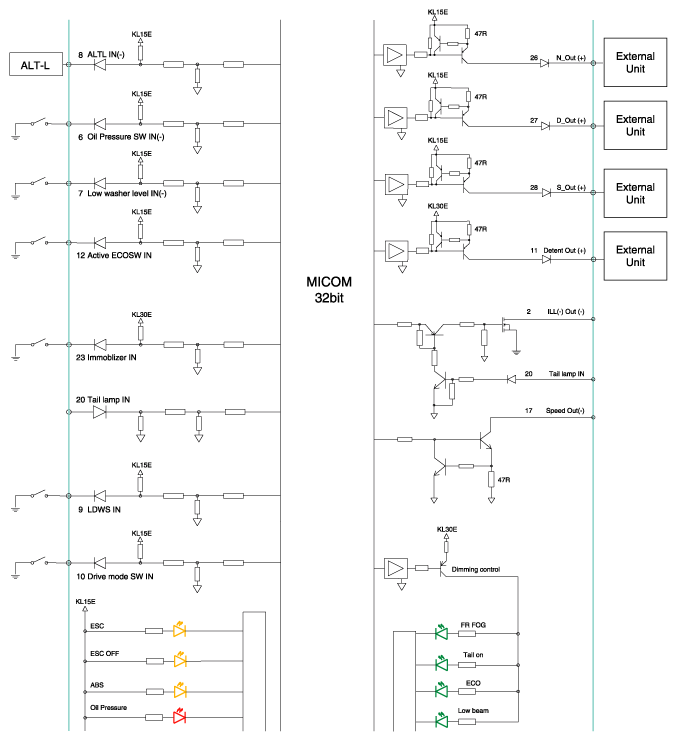

Fig 2: REG. Circuit Diagram (2 Of 3)

Courtesy of HYUNDAI MOTOR AMERICA

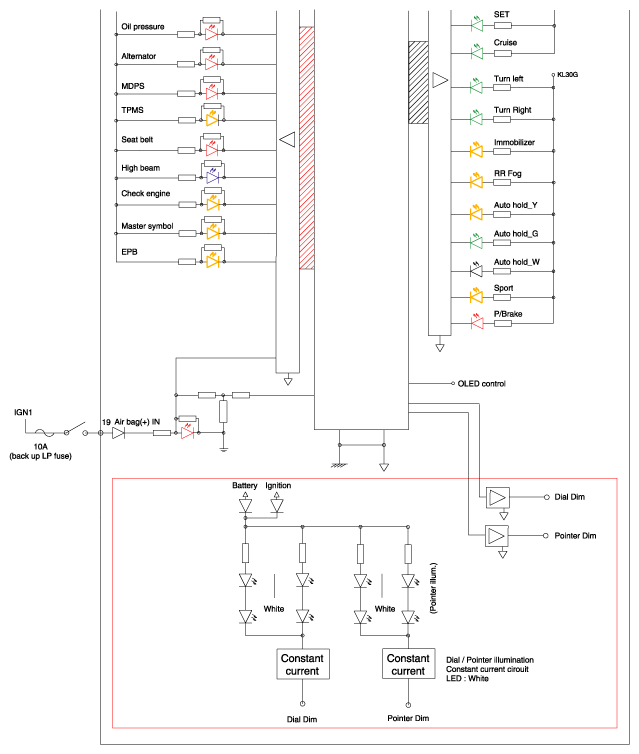

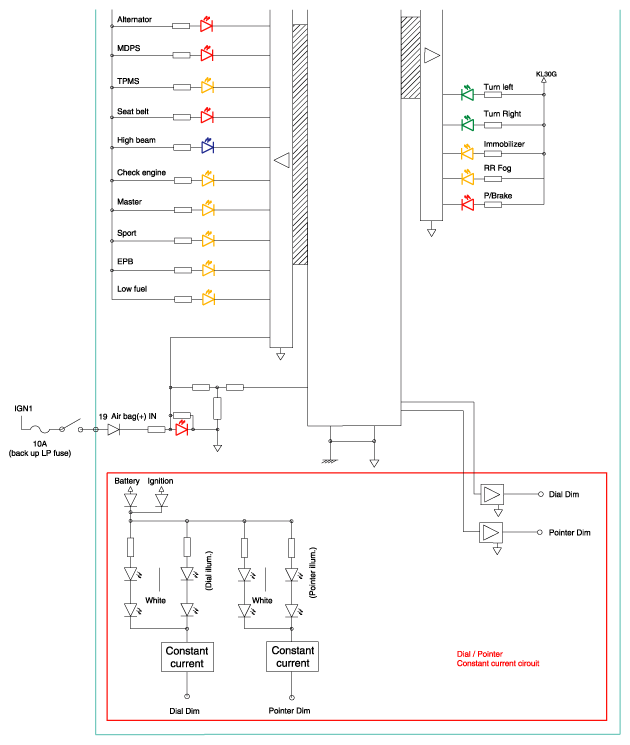

Fig 3: REG. Circuit Diagram (3 Of 3)

Courtesy of HYUNDAI MOTOR AMERICA

Fig 4: TFT LCD Circuit Diagram (1 Of 3)

Courtesy of HYUNDAI MOTOR AMERICA

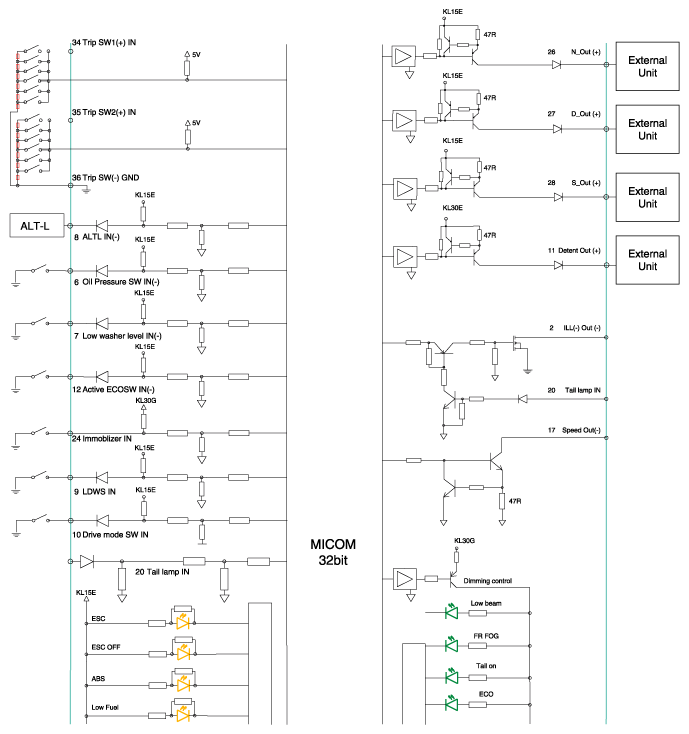

Fig 5: TFT LCD Circuit Diagram (2 Of 3)

Courtesy of HYUNDAI MOTOR AMERICA

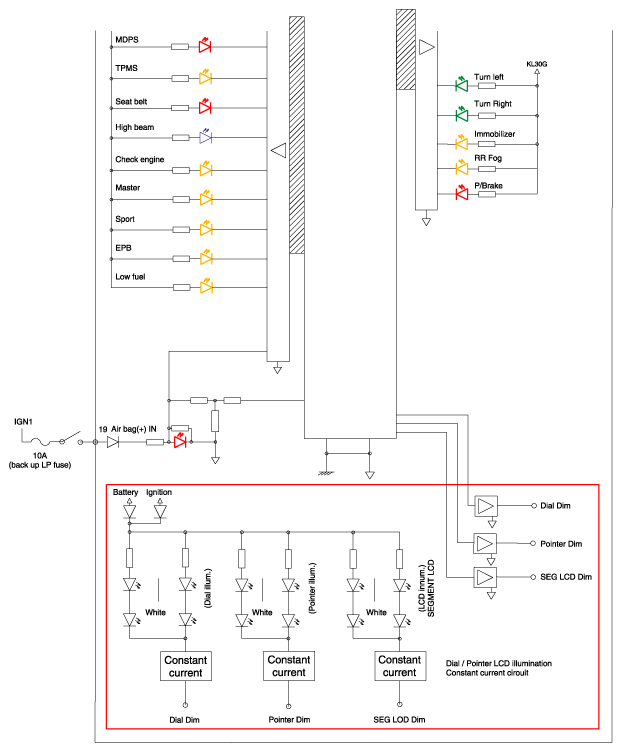

Fig 6: TFT LCD Circuit Diagram (3 Of 3)

Courtesy of HYUNDAI MOTOR AMERICA

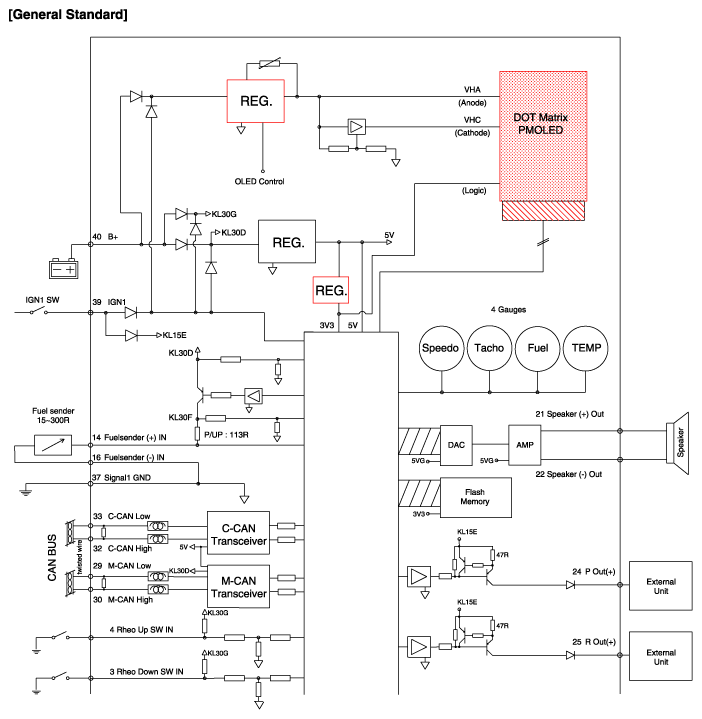

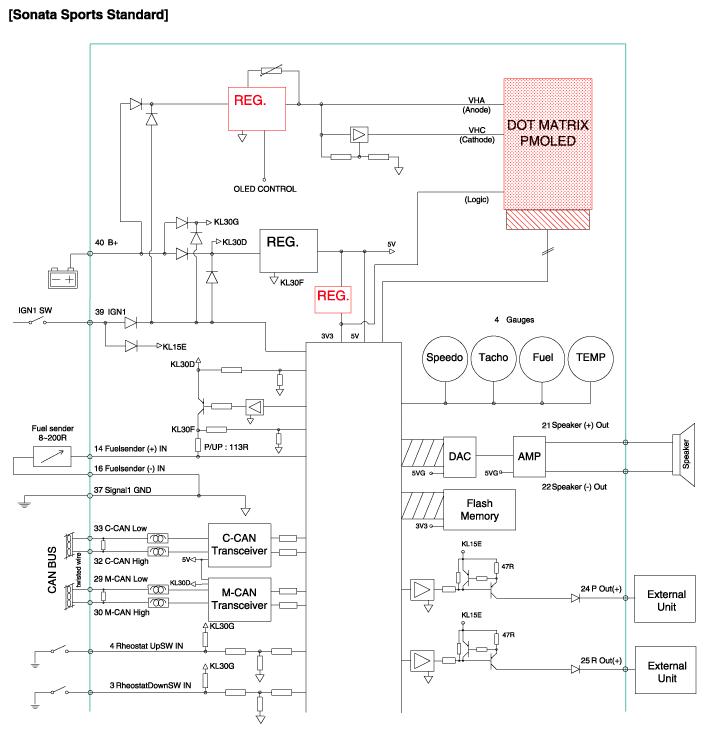

Fig 7: DOT MATRIX PMOLED Circuit Diagram (1 Of 3)

Courtesy of HYUNDAI MOTOR AMERICA

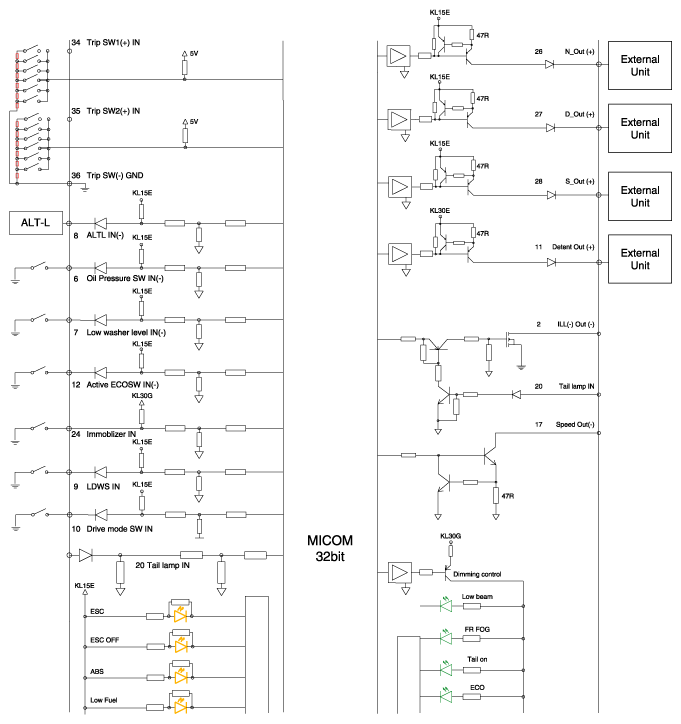

Fig 8: DOT MATRIX PMOLED Circuit Diagram (2 Of 3)

Courtesy of HYUNDAI MOTOR AMERICA

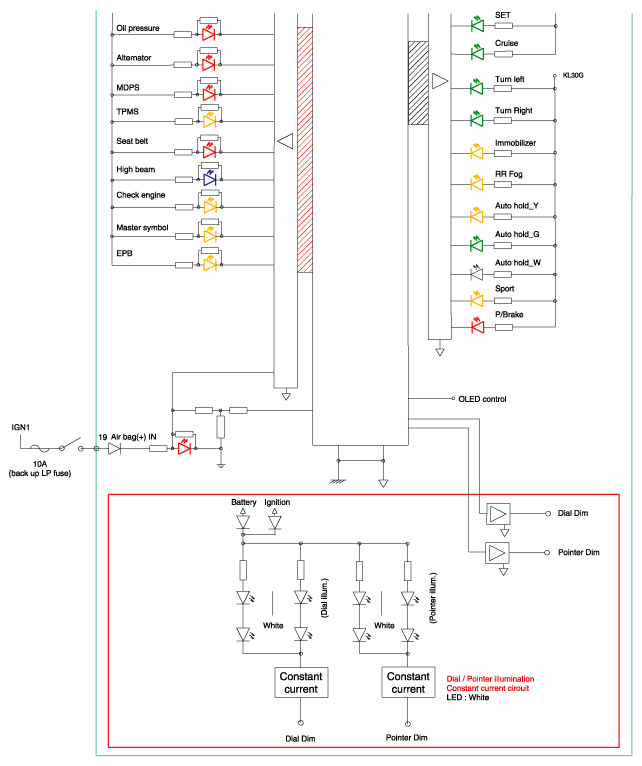

Fig 9: DOT MATRIX PMOLED Circuit Diagram (3 Of 3)

Courtesy of HYUNDAI MOTOR AMERICA

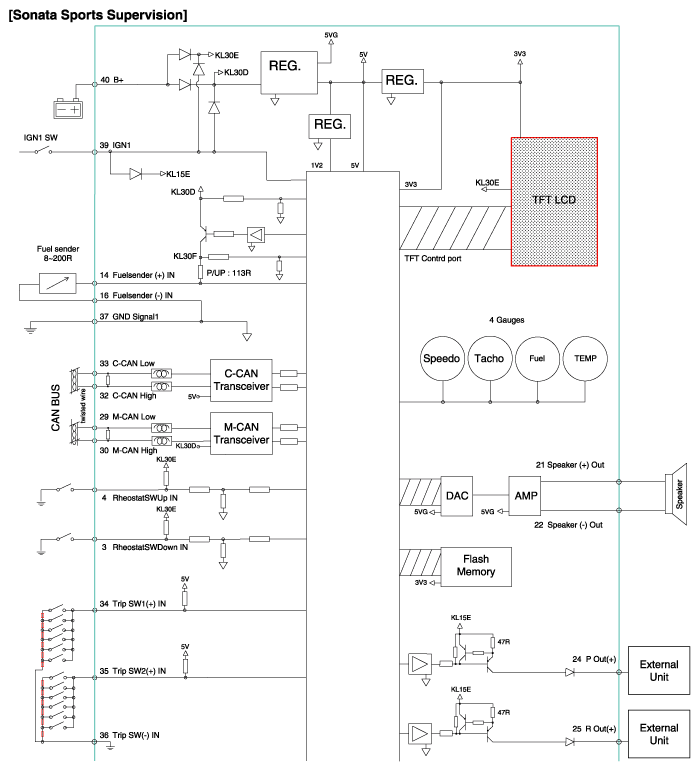

Fig 10: Sonata Sports Supervision Circuit Diagram (1 Of 3)

Courtesy of HYUNDAI MOTOR AMERICA

Fig 11: Sonata Sports Supervision Circuit Diagram (2 Of 3)

Courtesy of HYUNDAI MOTOR AMERICA

Fig 12: Sonata Sports Supervision Circuit Diagram (3 Of 3)

Courtesy of HYUNDAI MOTOR AMERICA
