Communication Network Diagram

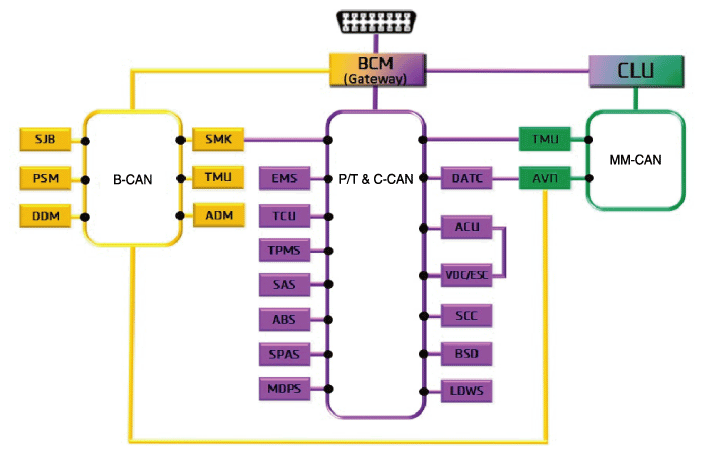

Fig 1: BCM Communication Network Diagram
G10567751Courtesy of HYUNDAI MOTOR AMERICA
Abbreviation Explanation
ACU Airbag Control Unit
ADM Assist Door Module
B_CAN Body Controller Area Network
BCM Body Control Module
BSD Blind Spot Detection
C_CAN Chassis Controller Area Network
CLU Cluster Module
DATA Dual Automatic Temp Control
DDM Driver Door Module
ESC Electronic Stability Program
EMS Engine Management System
LDWS Lane Departure Warning System
M_CAN Multi media Controller Area Network
MDPS Motor Driven Power Steering
P_CAN Powertrain Controller Area Network
PSM Power Seat Module
SAS Steering Angle Sensor
SJB Smart Junction Block
SMK Smart Key Unit
SPAS Smart Parking Assist System
TCU Transmission Control Unit
TPMS Tire Pressure Monitoring System
VDC Vehicle Dynamic Control
TMU Telematics System
ABS Anti-lock Brake System
SCC Smart Cruise Control
