Components and Components Location: Components

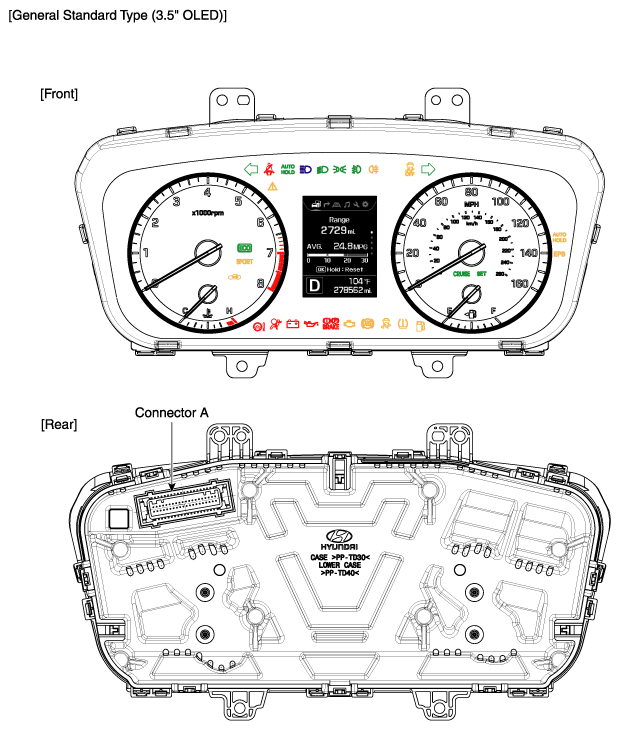

Fig 1: Instrument Cluster Front And Rear Components (General Standard Type)

Courtesy of HYUNDAI MOTOR AMERICA

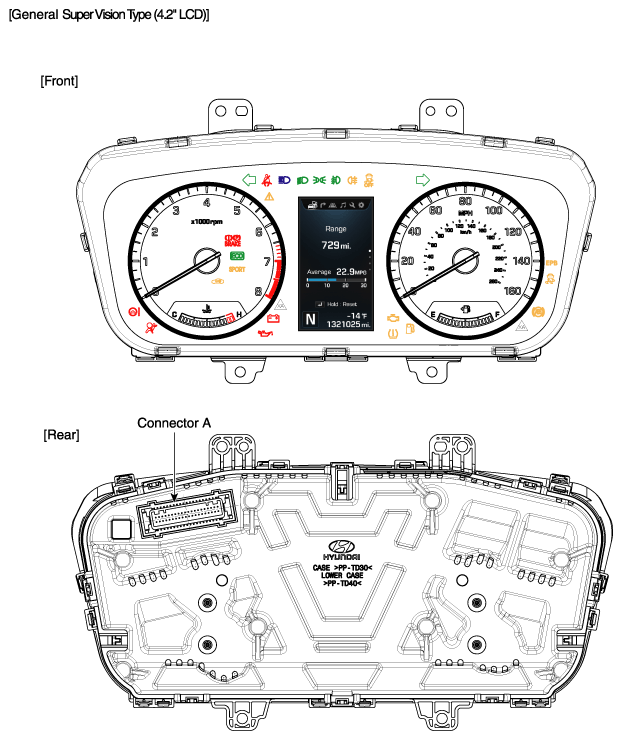

Fig 2: Instrument Cluster Front And Rear Components (General Super Vision Type)

Courtesy of HYUNDAI MOTOR AMERICA

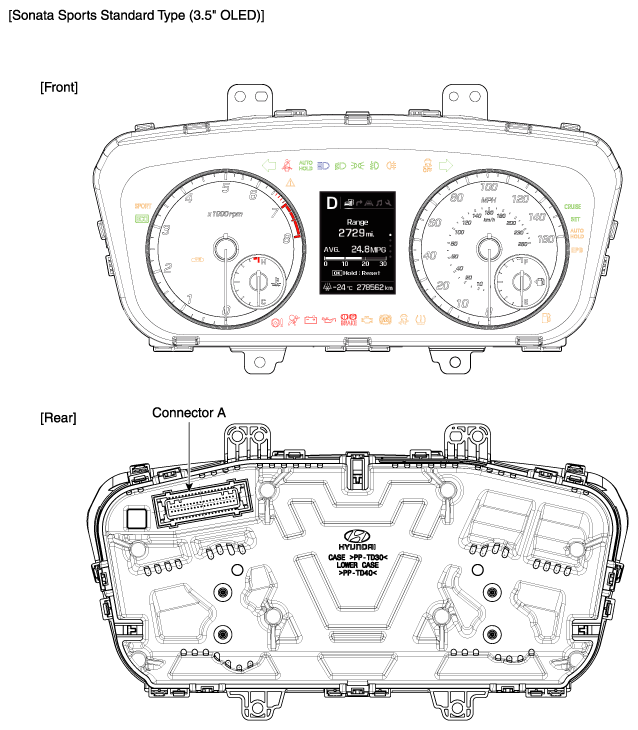

Fig 3: Instrument Cluster Front And Rear Components (Sonata Sports Standard Type)

Courtesy of HYUNDAI MOTOR AMERICA

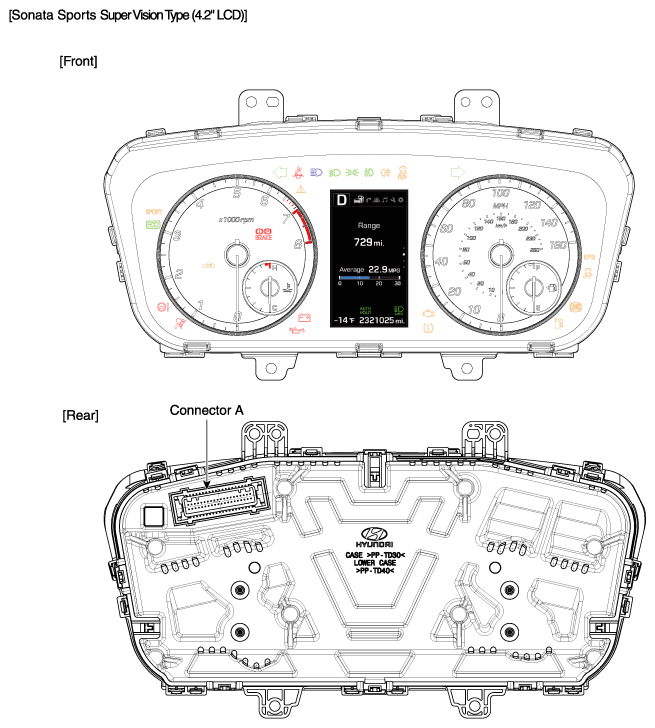

Fig 4: Instrument Cluster Front And Rear Components (Sonata Sports Super Vision Type)

Courtesy of HYUNDAI MOTOR AMERICA

Fig 5: Instrument Cluster Connector Terminal

Courtesy of HYUNDAI MOTOR AMERICA

CONNECTOR PIN INFORMATION

No	Description	No	Description
1	-	21	Speaker (+)
2	Illumination (-)	22	Speaker (+)
3	Rheostat switch (Down)_Input	23	Immobilizer_Input
4	Rheostat switch (Up)_Input	24	AT ('P' Position)
5	-	25	AT ('R' Position)
6	Oil press switch_Input	26	AT ('N' Position)
7	Washer level (Low signal)_Input	27	AT ('D' Position)
8	Alternator_Input	28	AT ('S' Position)
9	LDWS_Input	29	Multimedia-CAN (Low)
10	Driver mode switch_Input	30	Multimedia-CAN (High)
11	Detent	31	-
12	Active ECO switch_Input	32	Chassis-CAN (High)
13	-	33	Chassis-CAN (Low)
14	Fuel sender (+)_Input	34	Trip switch 1 (+)_Input
15	-	35	Trip switch 2 (+)_Input
16	Fuel sender (-)_Input	36	Trip switch (-)_Input
17	Vehicle speed	37	GND
18	-	38	-
19	AIR BAG (+)_Input	39	IGN 1
20	Tail Lamp_Input	40	Battery (+)
