Repair Procedures: Removal

Remove the roof trim.
Open the roller blind using the panorama sunroof switch.
Information
- Leave 10 ~ 20cm (0.3937 ~ 0.7874 in) of the roller blind unopened.

  Fig 1: Removing Roof Trim
  Courtesy of HYUNDAI MOTOR AMERICA
Remove the roller blind bar (C) by pressing the top part of the lock pin (B) located on the both sides of the roller blind shoe (A).

Fig 2: Roller Blind Bar, Lock Pin And Roller Blind Shoe
Courtesy of HYUNDAI MOTOR AMERICA
Put a fixed pin (B) into the hole located inside the groove of the right side roller blade side bracket (A). Be careful not to release tension.

Fig 3: Roller Blade Side Bracket Fixed Pin
Courtesy of HYUNDAI MOTOR AMERICA

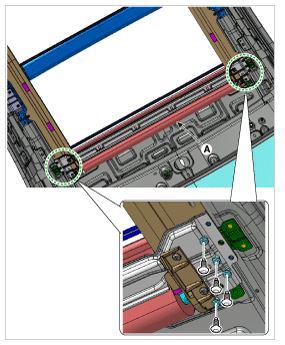

Remove the roller blind lower support (A) by loosening the mounting screws.

Fig 4: Removing Roller Blind Lower Support Mounting Screws
Courtesy of HYUNDAI MOTOR AMERICA
