Repair Procedures: Installation

Install the roller blind side bracket (A) fit into the guide groove (B).

Fig 1: Installing Roller Blind Side Bracket To Guide Groove
Courtesy of HYUNDAI MOTOR AMERICA

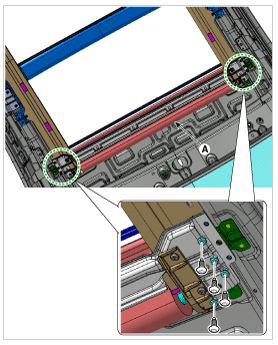

Tighten the mounting screws after installing the roller blind lower support (A).

Fig 2: Tightening Mounting Screws
Courtesy of HYUNDAI MOTOR AMERICA
Remove the fixed pin (B) located inside the right side roller blade side bracket (A).

Fig 3: Removing Side Roller Blade Side Bracket Fix Pin
Courtesy of HYUNDAI MOTOR AMERICA
Put the roller blind bar (A) into the roller blind shoe (B).

Fig 4: Roller Blind Bar And Roller Blind Bar Shoe
Courtesy of HYUNDAI MOTOR AMERICA
